Biological Microscope (BK3000 Series)

Item Code: Features:
  • Description
  • Main Specifications
  • Accessories

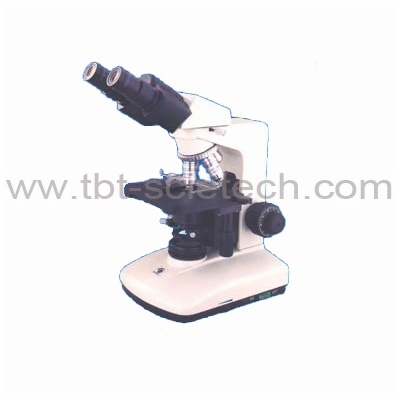

BK3000 Series Biological Microscope
Description:
Total magnifications ......................40X-1600X
Eyepiece ................................................WF10
IOS infinity-corrected achromatic objectives
........... 4X/0.10 10X/0.25 40X/0.65 100X/1.25 (Oil)
Condenser ............................................NA1.25
Coaxial coarse and fine focusing adjustment knobs
Base ...Built in 6V 20W halogen bulb with adjustable brightness
Note: IOS= Infinity-corrected optical system
Optional accessories
1) Eyepieces ...WF16X WF 10X (pointer) WF10X (article)
2) Photo eyepieces ................................S2.5 S4
3) Simple polarizer attachment .......Polarizer slide
....................................................Analyzer slide
4) Dark field attachment .......Dark field condenser
5) Phase contrast attachment
6) 35mm photo attachment
7) C-Mount and CCD camera
BK3000 Standard Outfits
Item
Specification
BK3200
BK3300
Order No.
Eyepieces
Plan eyepiece (10X-18)
●●
●●
EP10a
Photo negative eyepiece S4

EPHn4
IOS achromatic
objectives
4X/0.10
B-OAi4a
10X/0.25
B-OAi10a
(S) 40X/0.66
B-OAi40a
(S) 100X/1.25(oil)
B-OAoil100a
Eyepiece
Heads
Binocular head(30°inclined,revolution)

TBR11
Trinocular head(30°inclined,revolution)

TTR04
Main body
Five-hole nosepiece
MSBk5
condenser
N.A.1.25Oil
C20
base
AC220V or 110V
B26
attachment
Photo tube

MP03
35mm DF camera


Immersion oil


Filter
32 (blue)
CU02-1

BK3000 Optional Accessories
Item
Specification
Order No.
Eyepieces
Plan eyepiece (16X-10)
EP10a
Pointer eyepiece (10X-17.2)
Erg10
Plan reticle eyepiece (10X-18)
EPr10b
2.5X photo negative eyepiece
EPHn2.5
Filter
32 (Green)
CU02-2
32 (Amber)
Cu02-3
Reflector

MT04
Dark field
Attachment
Dark field condenser
C07
Simple dark field attachment
DS03
Simple polarizer
attachment
Polarizer slide
PO01
Analyzer slide
PA01
Note“●”in the table is standard attachment. “○”is optional accessories.
Design change:To keep pace with technological advance ,we have reserved
the right to make design modifications and changes without notice.


Any questions, please contact us.

Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

Tel: 86-25-8472 1577/8472 1579/8472 1907
