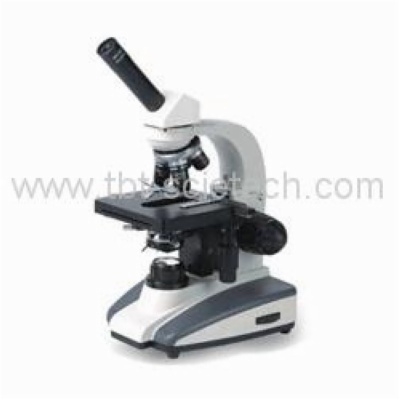

XSZ-136 Research Biological Microscope
I. Application:
This series microscope is developed for various applied scopes. From daily work to scientific research,
It is widely used in Biology, Histology, Pathology, Medicament chemistry research and Clinical examination.
It is also used for education Colleges and Schools.
II, Specification:
Specification
|
Model
|
|
XSZ-136F
|
XSZ-136F
|
XSZ-136F
|
|
Viewing head
|
Monocular Head. Inclined at 45 °
|
●
|
|
|
|
Compensation Free Binocular Head.
Inclined at 3 0 ° ( 55mm -75mm )
|
|
●
|
|
|
Compensation Free Trinocular Head.
Inclined at 3 0 ° ( 55mm -75mm ) )
|
|
|
●
|
|
Eyepiece
|
WF10 ×
|
●
|
●
|
●
|
|
Objective
|
Achromatic objective: 4 × ,10 × ,
40 × (S),100 × (S)Oil
|
●
|
●
|
●
|
|
Stage
|
Double layers mechanical stage
|
●
|
●
|
●
|
|
Stage size: 140mm × 140mm
|
●
|
●
|
●
|
|
Moving range: 75mm × 50mm
|
●
|
●
|
●
|
|
Condenser
|
N.A1.25 Abbe condenser with
iris diaphragm&filter
|
●
|
●
|
●
|
|
Focusing
|
Coaxial coarse & fine focusing
adjustment with rack and
Pinion mechanism.
|
●
|
●
|
●
|
|
Fine focusing scale Value 0.002mm
|
|
Collector
|
High brightness collector and
can be interconverted with
Kohler illumination
|
●
|
●
|
●
|
|
Light source
|
Halogen tungsten bulb 6V/30W.AC 85V-230V
|
●
|
●
|
●
|
|
Adjustable brightness
|
|
Optional Accessory
|
Eyepieces: WF16x,WF20x,P16x 1.3 Mega pixels
CMOS electronic eyepiece
|
|
Semi-plan objectives: 4X,10X,20X(S),
40(S),60X(S), 100(S)Oil
|
Photo and CDD attachment
|
|
Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
|
