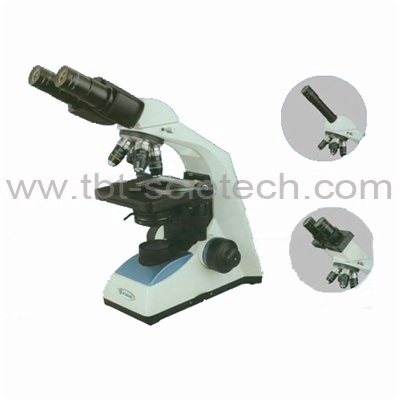

BS Series Biological Microscopes
Description:
BS Series Biological Microscope Outfits
Items
|
Specifications
|
BS100
|
BS101
|
BS201
|
BS202
|
BS203
|
Order No.
|
Eyepieces
|
WF10X/¢18
|
●
|
●
|
●●
|
●●
|
●●
|
EP10f
|
WF16X/¢10
|
○
|
○
|
○○
|
○○
|
○○
|
EP16c
|
WF10X/¢18(pointer)
|
○
|
○
|
○
|
○
|
○
|
EPr10b
|
WF10X/¢18(reticule)
|
○
|
○
|
○
|
○
|
○
|
Epg10a
|
Achromatic Objectives
|
4X/0.10
|
●
|
●
|
●
|
○
|
○
|
B-OA4d
|
10X/0.25
|
●
|
●
|
●
|
○
|
○
|
B-OA10e
|
(S)40X/0.65
|
●
|
●
|
●
|
○
|
○
|
B-OA40e
|
(S)100X/1.25(oil)
|
●
|
●
|
●
|
○
|
○
|
B-OAo100d
|
S-plan
Objectives
|
4X/0.10
|
○
|
○
|
○
|
●
|
●
|
B-OSP4a
|
10X/0.25
|
○
|
○
|
○
|
●
|
●
|
B-OSP10b
|
(S)40X/0.65
|
○
|
○
|
○
|
●
|
●
|
B-OSP40f
|
(S)100X/1.25(oil)
|
○
|
○
|
○
|
●
|
●
|
B-OSPo100b
|
Main Body
|
Quadruple Nose piece,
Coaxial Coarse and Fine Focusing Knobs
Mechanical Stage (Travel Range:50X75mm)
Natural Light
|
●
|
|
|
|
|
A14a
|
Quadruple Nose piece,
Coaxial Coarse and Fine Focusing Knobs
Mechanical Stage (Travel Range:50X75mm)
6V20W Halogen Lamp
|
|
●
|
●
|
●
|
|
A14
|
Quadruple Nose piece,
Coaxial Coarse and Fine Focusing Knobs
Mechanical Stage (Travel Range:50X75mm)
6V20W Halogen Lamp
Auxiliary Lens Built-in Body
|
|
|
|
|
●
|
A14b
|
Monocular Head
|
Inclined 45°
Rotatable 360°
|
●
|
●
|
|
|
|
TM20
|
Binocular Head
|
Sliding Binocular Head
Inclined 45°And Rotatable 360°,Interpupilary Distance:53-75mm
|
|
|
|
|
●
|
TBR17
|
Condenser
|
Abbe N.A.1.25
|
●
|
●
|
●
|
●
|
●
|
C27
|
Mirror
|
Inserted
|
|
○
|
○
|
○
|
○
|
MT07
|
Fixed
|
●
|
|
|
|
|
MT07a
|
Filter
|
Blue,¢32mm
|
|
●
|
●
|
●
|
●
|
Cu02-1
|
Blue,¢42mm
|
|
○
|
○
|
○
|
○
|
Cu02-8
|
Fuse
|
¢5X20/2A
|
|
●
|
●
|
●
|
●
|
|
Bulb
|
Halogen Tungsten Lamp 6V20W
|
|
●
|
●
|
●
|
●
|
|
Video Electronic Eyepiece
|
|
○
|
○
|
○
|
○
|
○
|
CCDa
|
Digital Electronic
Eyepiece
|
|
○
|
○
|
○
|
○
|
○
|
CCDb
|
Adaptor For Digital Camera
|
|
○
|
○
|
○
|
○
|
○
|
DV02a
|
Note:“●”in the table is standard attachment. “○”is optional accessories.
Design change:To keep pace with technological advance ,we have
reserved the right to make design modifications and changes without notice.
