Biological Microscope (XSZ-G Series)

Item Code: Features:
  • Description
  • Main Specifications
  • Accessories

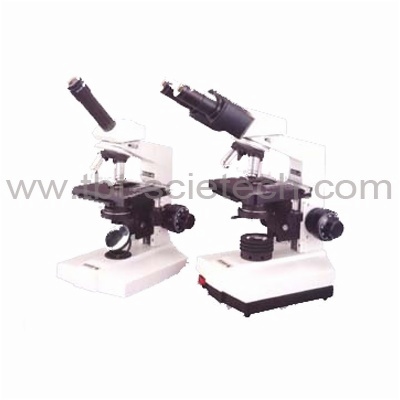

XSZ-G Series Biological Microscope
Description:
Total magnifications ..............................40X-1600X
Eyepiece ..................................................WF10X
Achromatic objectives ..........4/0.10 10/0.25 40/0.65
........................................................100/1.25 (Oil)
Rack and pinion focusing abbe condenser ...NA1.25
Coaxial coarse and fine focusing adjustment knobs
Base .......6V/20W halogen lamp with adjustable brightness
Optional accessories
1) Eyepiece ...............................................WF 16X
2) Phase contrast device
3) 35mm photo attachment
4) Photo eyepiece ............................................S4X
5) C-Mount and CCD camera
XSZ-G Series Biological Microscope Standard Outfits:
Items
XSZ-2G
XSZ-2GA
XSZ-3G
XSZ-4G
XSZ-7G
Order No.
Eyepiece WF 10X/18
●●
●●
●●
EP10a
Eyepiece WF 16X/10
○○
○○
○○
EP16a
Ach.Objective 4X/0.10
B-OA4
Ach.Objective 4X/0.25
B-OA10
Ach.Objective 4X/0.65
B-OA40
Ach.Objective 4X/0.10
B-OA100
Condenser
C11
Main Body
MS02
Monocular Head



TM10a
Sliding Binocular Head




3XG.1
Seidentopf Binocular Head




TBR02
Seidentopf Binocular Head




7XG.1
Plan positive or Negative Contrast Obj.40X N.A.0.65 N Annular Stop
LRPO2
Base (Mirror 48mm)




2XG-1
Base (6V20W Halogen Lamp)

B12
35mm Camera (With Adaptor)




MP03
Photo Eyepiece 4X




EPHn4
CCD C-Mount




TV02
Note“●”in the table is standard attachment. “○”is optional accessories.
Design change:To keep pace with technological advance ,we have reserved
the right to make design modifications and changes without notice.


Any questions, please contact us.

Email: sales@tbt-scietech.com;toni_gu@tbt-scietech.com

Tel: 86-25-8472 1577/8472 1579/8472 1907
