Metallurgical Microscope (XJP-2A/3A) Manufacturer

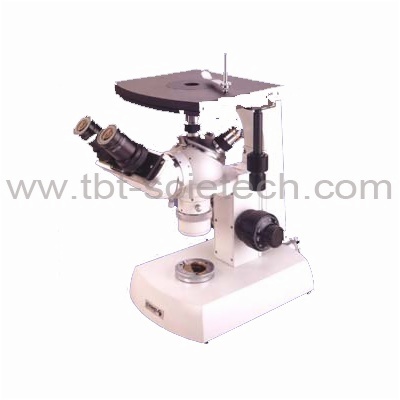

XJP-2A/3A Metallurgical Microscope

Description:

Total magnifications .............................50X-1250X
Plan achromatic objectives ....PL10/0.25 PL40/0.65
S-plan achromatic objective ...........SP100/1.25(Oil)
Eyepiece.......................................................H5X
Wild-field eyepieces ...................WF10X WF12.5X
Reticule eyepiece .............WF10X (0.1mm/division)

Optional accessories
1) Micrometer............................ (0.01mm/division)
2) Sample clamps
3) Plan achromatic objectives
..............................PL2.5/0.07 PL20/0.35 PL40.1

Standard Outfits

Order No.	Item	Model
Order No.	Item	XJP-2	XJP-2A	XJP-2B	XJP-3	XJP-3A
4J.2	Main body	●	●	●	●	●
4J.6	Monocular head (45°)	●	●	●
12X.4	Binocular head (45°)				●	●
4J.5	Mechanical stage (with a stroke of 28 by 24 and size of 170 by 166)	●	●			●
8306	Mechanical stage (with a stroke of 28 by 30 and size of 180 by 165)			●		●
4J.0-1	Stage plate (￠10)	●	●	●	●	●
4J.0-4	Stage plate (￠15)	●	●	●	●	●
12X.3-5	Stage plate (￠20)	●	●	●	●	●
EH5	Huyenian ocular (5X-20)	●	●	●	●●	●●
EP10a	Plan eyepiece (10X-18)	●	●	●	●●	●●
EP12.5	Plan eyepiece (12.5X-14)	●	●	●	●●	●●
EPr10b	Plan reticle eyepiece (10X-14)	●	●	●	●	●
B-OPr2.5	Plan achromat objective (2.5/0.07)	○	○	○	○	○
B-OAr4	Achromat objective (4/0.10)	○			○
B-OPr4	Plan achromat objective (4/0.10)		○	○		○
M-OAr10	Achromat objective (10/0.25)	●			●
M-OSPr40a	S-plan achromat objective (40/0.65)	●			●
M-OAor100	Achromat objective (100/1.25 oil)	●			●
M-OPr10	Plan achromat objective (10/0.25)		●	●		●
M-OPr40	Plan achromat objective (40/0.65)		●	●		●
M-OSpor100	S-plan achromat objective (100/1.25 oil)		●	●		●
	Colour filter ￠32(green,yellow,blue,grey)		●	●		●
4J.0-2	Gross glass ￠32	●	●	●	●	●
LYQ6-15D	HALOGEN LAMP 6V15W	●	●	●	●	●
LS09	Light source unit	●	●	●	●	●
3X-2	Transformer	●	●	●	●	●
CL02	Clamps	●	●	●	●	●
	Stage micrometer (division 0.01mm)	○	○	○	○	○
SC03	Sample holder	○	○	○	○	○

Note：“●”in the table is standard attachment. “○”is optional accessories.

Design change:To keep pace with technological advance ,we have reserved

the right to make design modifications and changes without notice.
