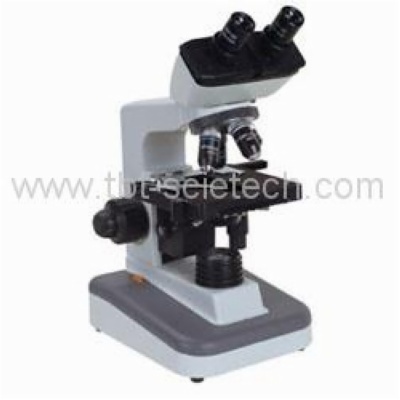

XSZ-127 Research Biological Microscope
I. Application:
This series microscope is developed for various applied scopes. From daily work to scientific research,
it is widely used in Biology, Histology, Pathology, Medicament chemistry research and Clinical examination.
It is also used for education in Colleges and Schools.
II. Specification:
Specification
|
Model
|
XSZ-127H
|
XSZ-127T
|
Viewing head
|
Sliding Binocular Head.
Inclined at 45 ° ( 52mm -74mm )
|
●
|
|
Sliding Trinocular Head.
Inclined at 45 ° ( 52mm -74mm )
|
|
●
|
Eyepiece
|
WF10 ×
|
●
|
●
|
Objective
|
Achromatic objective: 4 × ,10 × ,
40 × (S),100 × (S)Oil
|
●
|
●
|
Stage
|
Double layers mechanical stage
|
●
|
●
|
Stage size: 140mm × 140mm
|
Moving range: 75mm × 50mm
|
Condenser
|
N.A1.25 Abbe condenser with
iris diaphragm&filter
|
●
|
●
|
Focusing
|
Coaxial coarse & fine focusing
adjustment with rack and
pinion mechanism
Fine focusing scale Value 0.002mm
|
●
|
●
|
Collector
|
High brightness light collector
|
●
|
●
|
Light source
|
Halogen tungsten bulb 6V/30W.AC 85V-230V
|
●
|
●
|
Adjustable brightness
|
Optional Accessory
|
Eyepieces: WF16x,WF20x,P16x1.3Mega pixels
CMOS electronic eyepiece.
|
Semi-plan objectives: 4X,10X,20X(S),
40(S),60X(S),100(S)Oil
|
Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
|
