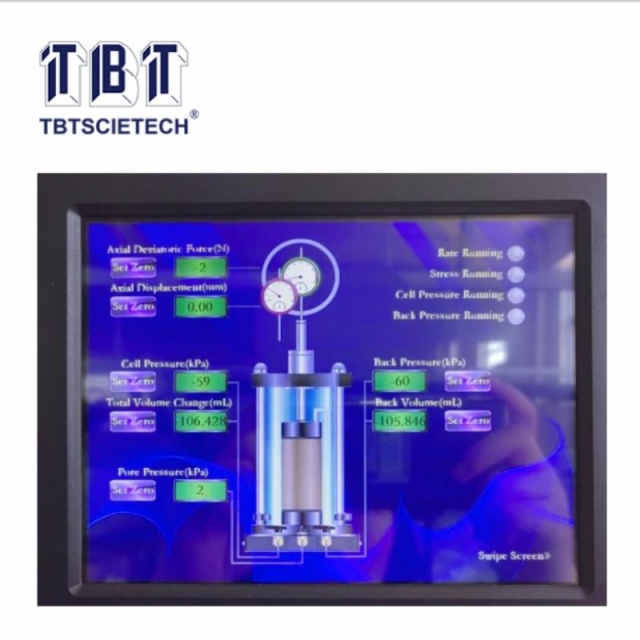

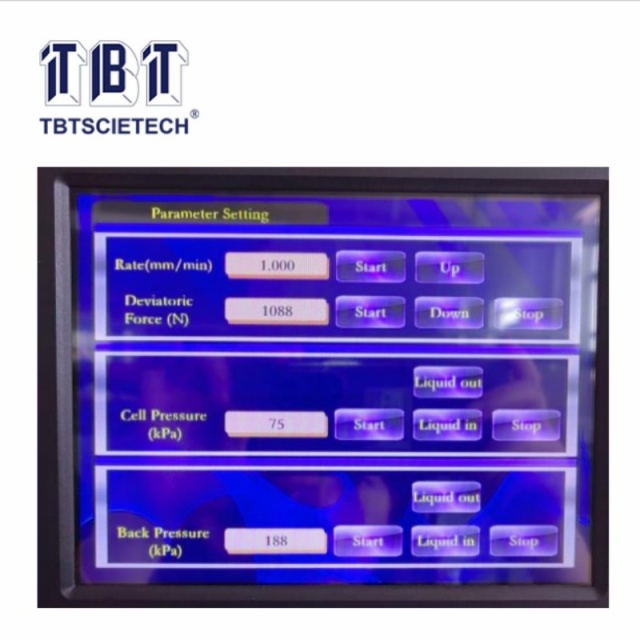

Triaxial Test Apparatus with Touch Screen Manufacturer

Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø101.1mm. It can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.

Product Model	TSZ-1A	TSZ-3A	TSZ-6A
Specimen	Ø39.1×80mm	Ø39.1×80mm，Ø61.8×125mm	Ø39.1×80mm，Ø61.8×125mm，Ø101×200mm
Capacity	10kN	30kN	60kN
Strain rate	0.016 – 2.4mm/min	0.0024 – 4.5mm/min	0.0024 – 4.5mm/min
Confining pressure	0 – 1MPa Digital control and display	0 – 2MPa Digital control and display	0 – 2MPa Digital control and display
Back pressure	0 – 0.6MPa Digital control and display	0 – 0.8MPa Digital control and display	0 – 0.8MPa Digital control and display
Power Supply	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ

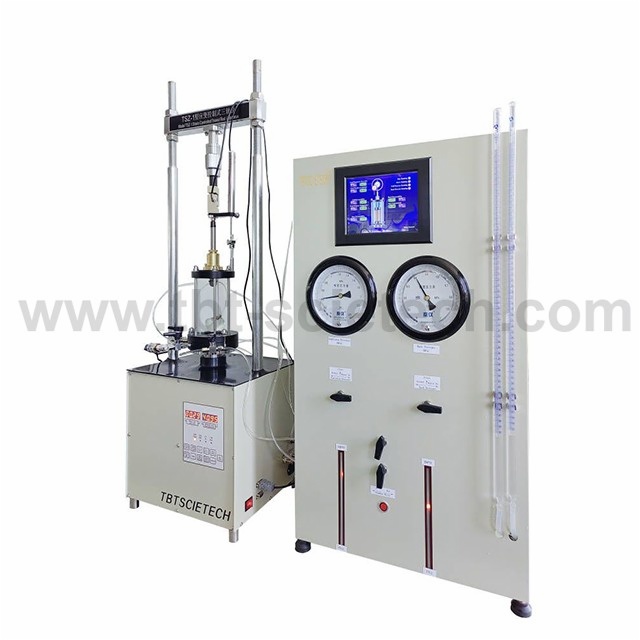

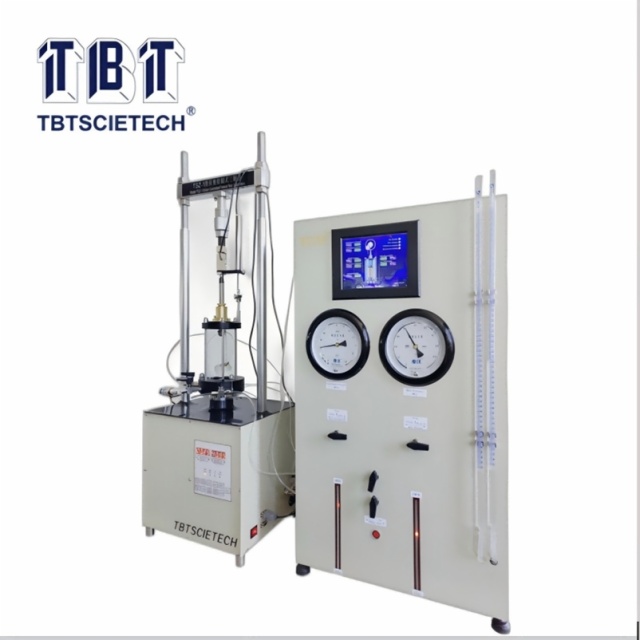

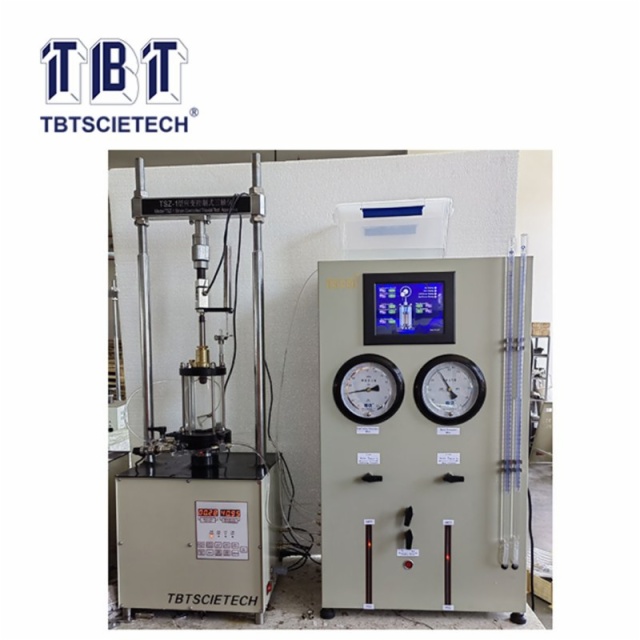

Triaxial Test Apparatus with Touch Screen TSZ-1A/3A/6A
