Low Temperature Kinematic Viscometer Manufacturer

a.The instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition for Kinematic Viscosity of Petroleum Products. It is suitable to determine the kinematic viscosity of liquid petroleum products (Newtonian liquids) under a constant temperature (low temperature) as per the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity of and calculation of dynamic viscosity.

b. Main technical features

1. This instrument is a kind of specially made instrument suitable to test the low temperature kinematic viscosity of petroleum oils. It adopts advanced technology of compressor refrigeration. The minimum temperature can reach -70℃.

2. It is equipped with lighting device for operator observing the indication more clearly.

3. It can do determination for two samples at a time. The work efficiency is high.

4. It adopts a floor type of all-in-one machine. Easy to move.

5. It is equipped with electric stirrer to make the temperature in bath uniform.

Power supply	AC 220V±10%, 50 Hz
Heating device	Electric heater, 600 W
Refrigeration unit	Double refrigeration compressors
Stirring motor	6 W, 1200 RPM
Temperature range	Ambient to 100.0℃
Temperature control accuracy	±0.1 ℃
Constant temperature bath	5.8 L, stainless steel
Ambient temperature	≤30 ℃
Relative humidity	≤85%
Temperature sensor	RTD, Pt100
Illumination	220 V electricity-saving lamp
Capillary viscometer tubes(Pinkevitch viscometer)	7 pieces in total. The diameters for each is 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5 mm.
Maximum power consumption	1700 W
Dimension	530mm×460mm×870mm

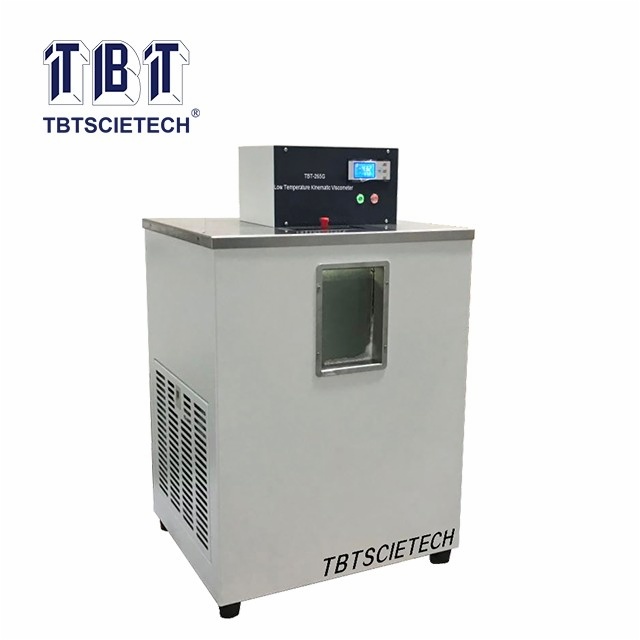

Low Temperature Kinematic Viscometer TBT-265G
