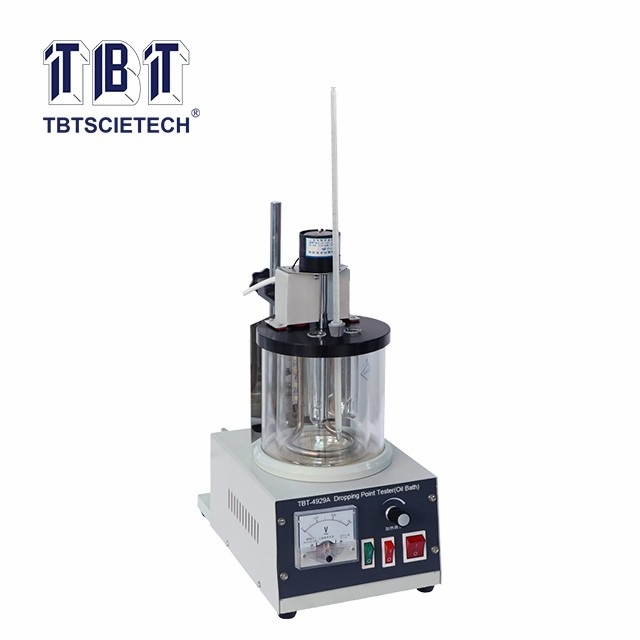

    Dropping Point Tester(Oil Bath) TBT-4929A

    Dropping Point Tester(Oil Bath)
    Item Code:TBT-4929A Features:TBT-4929A is designed as per the ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-4929A is designed as per the ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.

     ASTM D566

    1.The heating power can be adjusted continuously;
    2.The temperature in oil bath is uniform.

    Oil bath

    600 ml beaker

    Grease cup

    Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm

    The height of the cup is about 12mm

    Test tube

    A tube made of heat-resistant glass with rim. Its inner diameter is 11.1mm to 12.7mm. There are three indentations at about 19mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup

    Thermometer

    -5℃~300℃, scale value is 1℃

    Total length is 390mm and the depth immersed is about 76mm

    Heater

    800W tubular heater

    Stirring motor

    Rotating speed 60RPM

    Working temperature & humidity

    -10~40℃, ≤85%RH

    Max. power consumption

    900W

    Size

    350×180×410mm

    Power supply

    220V, 50Hz
