    Vapor Pressure Tester (Reid Method) TBT-8017

    • Vapor Pressure Tester (Reid Method)
    • Vapor Pressure Tester (Reid Method)
    Vapor Pressure Tester (Reid Method)
    Vapor Pressure Tester (Reid Method)

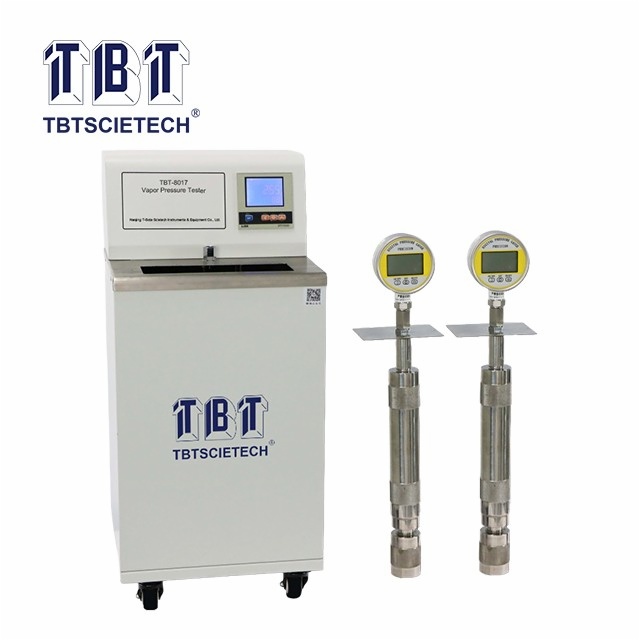

    Item Code:TBT-8017 Features:TBT-8017 is designed referring to ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-8017 is designed referring to ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).
    It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

    ASTM D323

    1.Floor type structure. Stainless steel working table;

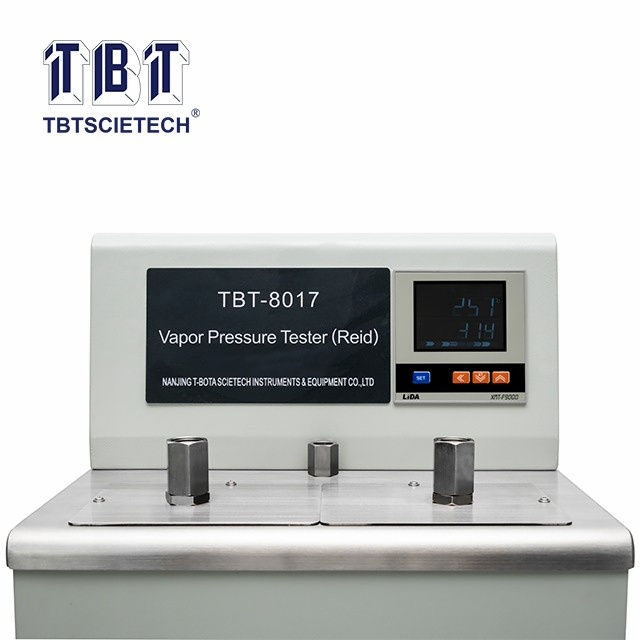

    2.Digital temperature controller. Temperature control accuracy is high and water bath temperature is uniform;
    3.Two precise pressure meters to detect the gas pressure inside the bomb;
    4.Two sets of vapor pressure bombs. It can do synchronous tests.

    Temperature control range of bath

    Room temperature to 90℃

    Temperature control accuracy of bath

    ±0.1℃

    Accuracy of pressure meter

    ±0.4%F.S

    Total power consumption

    1700W

    Working temperature & humidity

    15~35℃, ≤85%RH

    Size

    350×340×750mm

    Power supply

    220V, 50Hz
