Achieving a 600kN capacity using an electromechanical drive is a technical watershed.

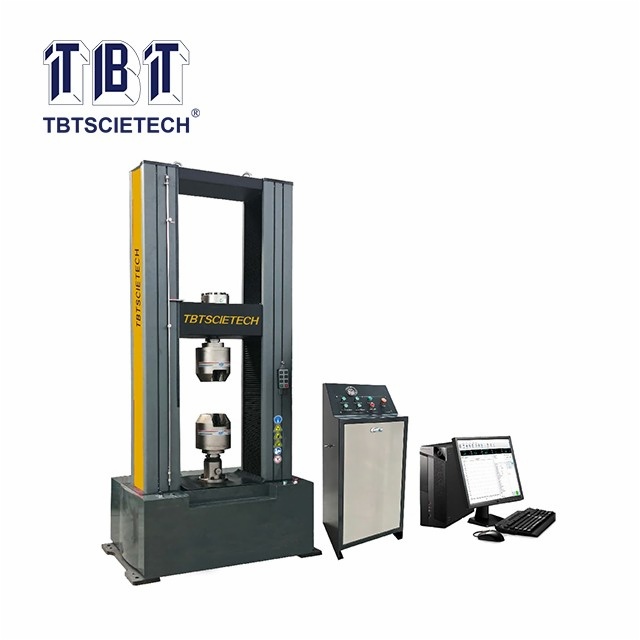

TBTWDW-600H is a high-performance Electronic Universal Testing Machine with 600kN load force engineered for rigorous tension, compression, and bending evaluation across a wide spectrum of metallic and non-metallic materials. Powered by a high-fidelity closed-loop control and integrated data acquisition system, it ensures fully digital synchronization and sub-millisecond responsiveness for unparalleled measurement accuracy.

The system streamlines laboratory workflows by automatically calculating critical technical indexes—such as Ultimate Tensile Strength (UTS), compressive yield, and elongation—based on pre-set parameters. With an intuitive digital interface, operators can monitor real-time test curves, conduct comprehensive data inquiries, and generate standards-compliant professional reports with a single click, ensuring total data traceability and repeatable results for high-end quality assurance.

1.High-rigidity frame: minimizes structural elastic deformation under loads to guarantee ultimate precision;

2.Precision ball screws: engineered to withstand tens of tons of axial loading;

3.Advanced servo drive: high-power, high-precision AC servo motor and premium speed reducer;

4.High-capacity load cell: Class 0.5 accuracy with TBT technology for superior eccentric load resistance;

5.Handheld controller: enables precise, flexible control of crosshead displacement and speed;

6.Versatile testing options: expandable to tensile, compression, flexural/bending, torsion, and other mechanical property tests via optional fixtures;

7.Robust test database: provides seamless data saving, advanced querying, and efficient retrieval;

8.Multi-mode control: supports constant-rate control across load, stress, deformation, strain, stroke, and elongation, alongside low-cycle and custom-programmed sequences;

9.Flexible curve switching: seamlessly toggles between real-time curves (stress/strain, load/deformation, load/displacement, load/time, deformation/time, displacement/time, load/strain);

10.Advanced curve analysis: features real-time zooming (partial enlargement), curve overlay (superposition), and multi-test comparison;

11.Automatic home return: features an intelligent, high-speed auto-return to the initial position for enhanced testing efficiency;

12.Comprehensive safety protection: including over-travel protection, over-current protection, and an emergency stop safety switch.

Max. load capacity	600kN
Grade/class	Class 0.5
Measuring range of load	1%~100%F.S.
Relative error of indication	±0.5%
Load resolution	1/300,000F.S.
Measuring range of deformation	0.2%~100%
Speed control range of displacement	0.005~300mm/min
Speed control accuracy of displacement	Within ±1% of the set value
Travel of crosshead (without grips)	1370mm
Span	700mm
Motor power	5000W
Control method	Computer automatically control
Working temperature & humidity	Room temperature~45℃, 20%~80% RH
Size	1280x1050x2650mm
Power supply	380V, 50/60Hz

Electronic Universal Testing Machine with PC control TBTWDW-600H
