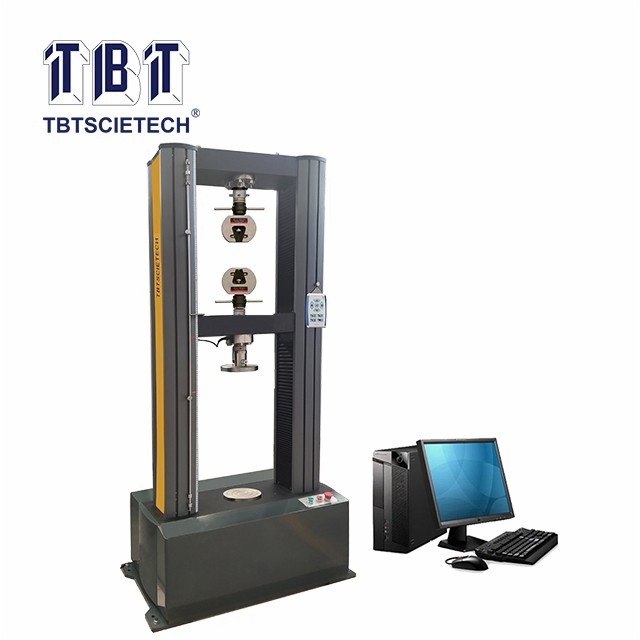

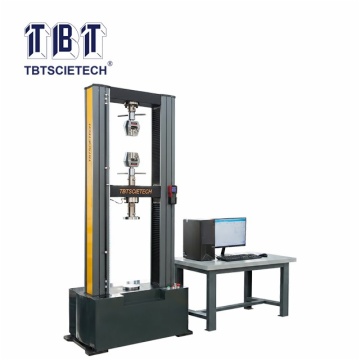

TBTWDW-20H is a high-performance Electronic Universal Testing Machine engineered for rigorous tension, compression, and bending evaluation across a wide spectrum of metallic and non-metallic materials. Powered by a high-fidelity closed-loop control and integrated data acquisition system, it ensures fully digital synchronization and sub-millisecond responsiveness for unparalleled measurement accuracy.

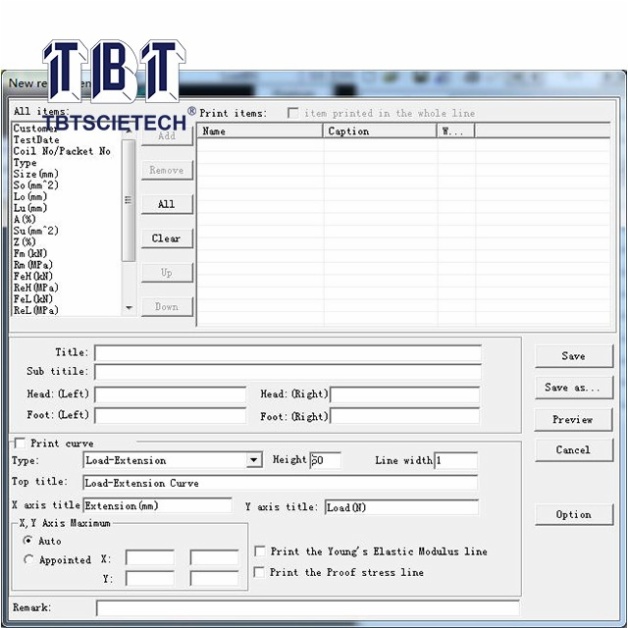

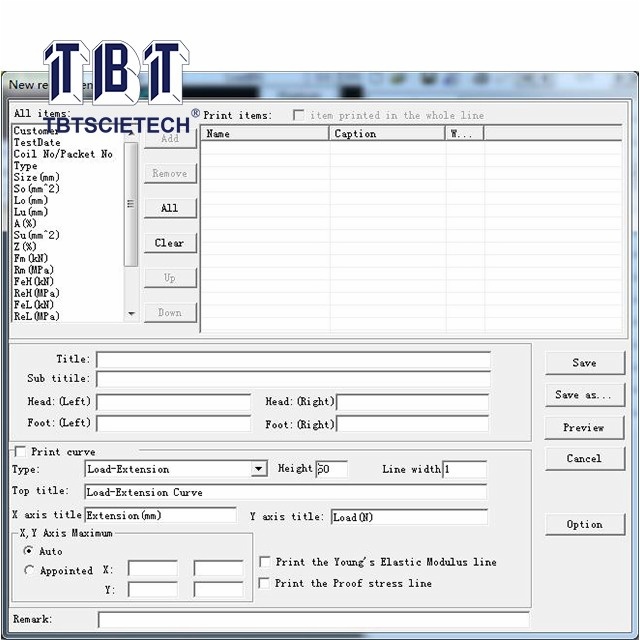

The system streamlines laboratory workflows by automatically calculating critical technical indexes—such as Ultimate Tensile Strength (UTS), compressive yield, and elongation—based on pre-set parameters. With an intuitive digital interface, operators can monitor real-time test curves, conduct comprehensive data inquiries, and generate standards-compliant professional reports with a single click, ensuring total data traceability and repeatable results for high-end quality assurance.

1. Hand-held controller to adjust moving speed of the cross beam flexibly;

2. Function of automatic return to the original position, intelligent, high efficient, quick;

3. Protective functions of limit position protection and over voltage, over current protection, reliable, safe;

4. Powerful test database, in which test data can be saved, inquired and called;

5. Various control modes of constant rate control to load, stress, deformation, strain, stroke, elongation, low cycle and self-programming control;

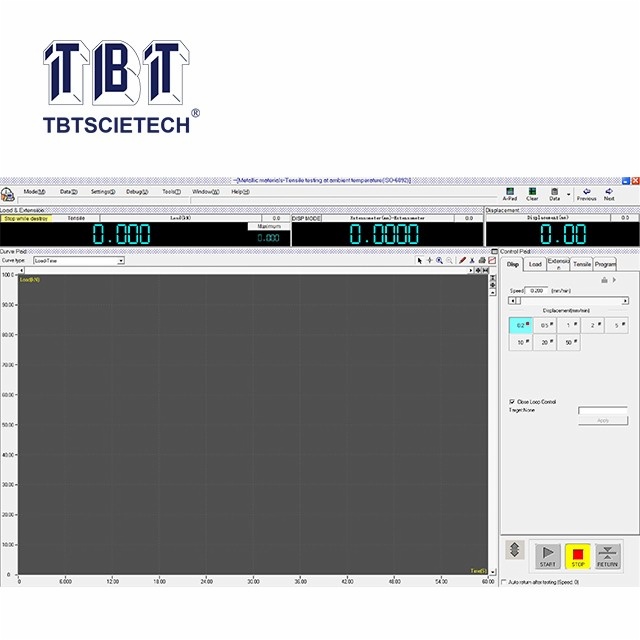

6. Switching function among many test curves: stress-strain, load-deformation, load-displacement, load-time, deformation-time, displacement-time, load-strain;

7. With functions of partial enlargement, superposition and comparison;

8. If device is equipped with other accessories, it can perform tensile, compression, bending, torsion and other mechanical property tests;

9. Limit position protection function;

10. Over current protection function;

11. Safe emergency stop function.

Max. load capacity	20kN
Grade/class	Class 0.5
Measuring range of load	1%~100%F.S.
Relative error of indication	±0.5%
Load resolution	1/±300000F.S.
Measuring range of deformation	0.2%~100%
Speed control range of displacement	0.005~500mm/min
Speed control accuracy of displacement	Within ±0.2% of the set value
Travel of cross beam (without grips)	1000mm
Span	400mm
Motor power	400W
Control method	Computer automatically control
Working temperature & humidity	Room temperature~45℃, 20%~80% RH
Size	860x410x1720mm
Power supply	220V, 50/60Hz

Electronic Universal Testing Machine with PC Control TBTWDW-20H
