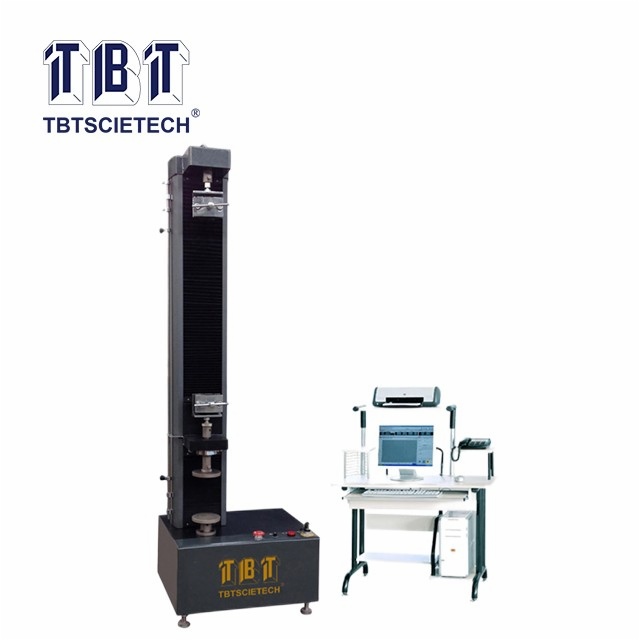

Electronic Universal Testing Machine(Single Column) Manufacturer

TBTWDW-5H can perform physical tests such as tensile, compression, bending, shearing, peeling, tearing test on various metals, non-metals or composite materials products.

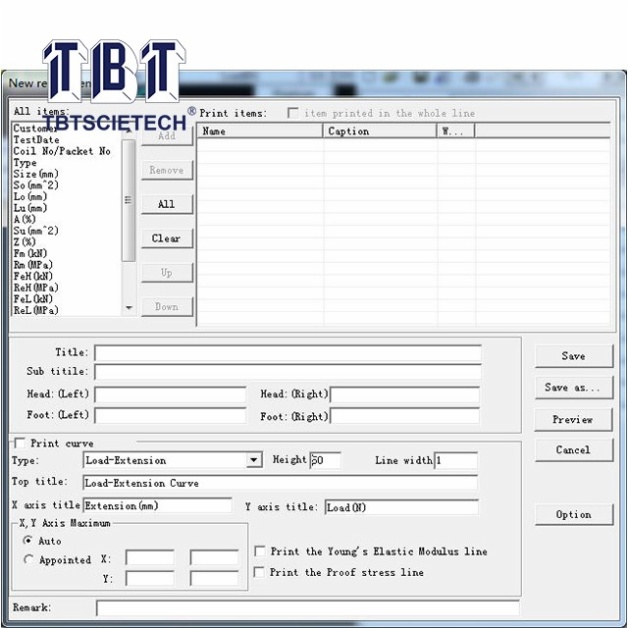

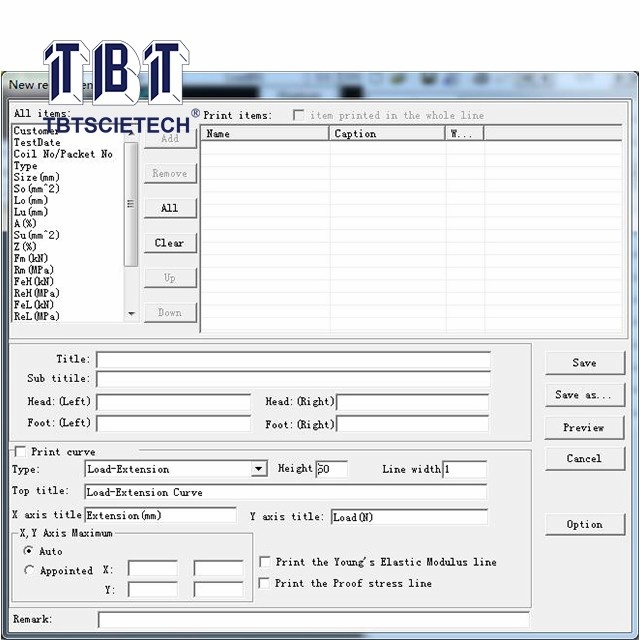

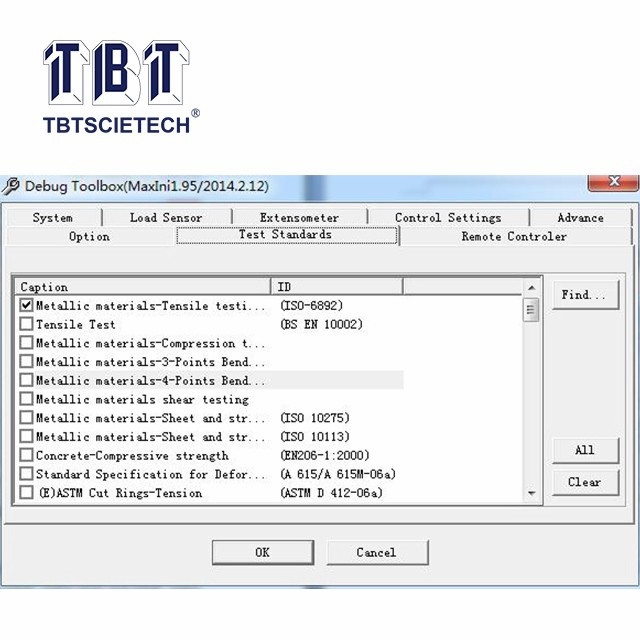

The whole process of the test is controlled by computer with modular program design, which can automatically perform data storage, analysis and print report curves.

1. Remote control box to realize speed adjustment of crossbeam, flexibly and freely switched;

2. Function of automatic return to original position, intelligently, efficiently, quickly;

3. Limit protection function of any work position and over voltage, over current protection functions;

4. Strong test data, which can save, inquire and retrieve test data anytime.

5. Various control modes of constant speed control to force, stress, deformation, strain, stroke, load, elongation, displacement and low cycle and user self-programming control;

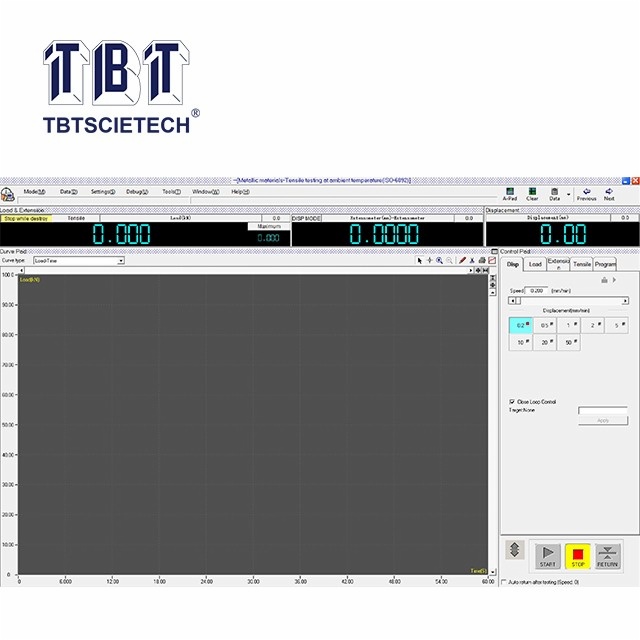

6. Switch among many test curves: Stress-strain, load-deformation, load-displacement, load-time, deformation-time, displacement-time, load-strain;

7. With functions of partial enlargement, superposition and comparison;

8. If device is equipped with other accessories, it can perform tensile, compression, bending, torsion and other mechanical property tests;

9. Limit position protection function;

10. Over current protection function;

11. Safe emergency stop function.

Max. load capacity	5kN
Grade class	Class 0.5
Measuring range of load	0.4%~100%F.S
Resolution of load indication	1/300,000F.S
Measuring range of deformation	0.2%~100%F.S
Relative error of indication	Within ±1.0%
Max. crosshead speed	500mm/min
Effective test depth	Distance between clamp center & edge protection cover 60mm
Travel of crossehead	1000mm(without grips)
Test space	Around 700mm(with tensile wave grips)
Protection function of overtravel and overload	Protection device for upper & lower limit position of the stroke When the test force exceeds 10%, the system will be automatically shut down for protection
Size	450x500x1600mm
Weight	Around 130kg
Power supply	220V, 50/60Hz

Electronic Universal Testing Machine(Single Column) TBTWDW-5H
