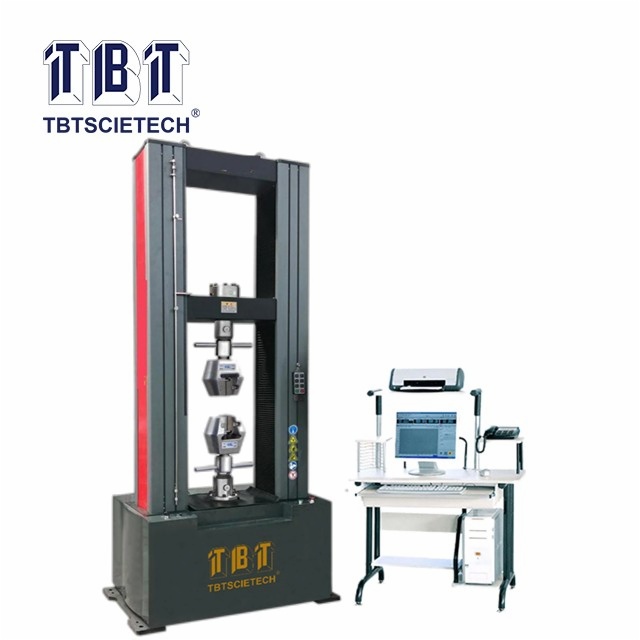

Electronic Universal Testing Machine with PC control Manufacturer

TBTWDW-200H is mainly used to perform tension, compression, bending and other mechanical property indexes for metallic, nonmetallic and composites;

It adopts precise auto control and data acquisition system to realize fully digital adjustment for data acquisition and control process;

It is used to test tensile strength, compression strength, elongation and other technical indexes;

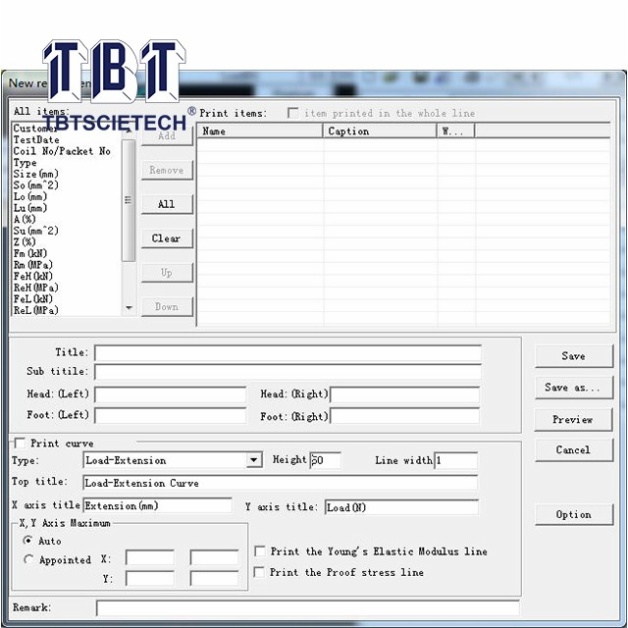

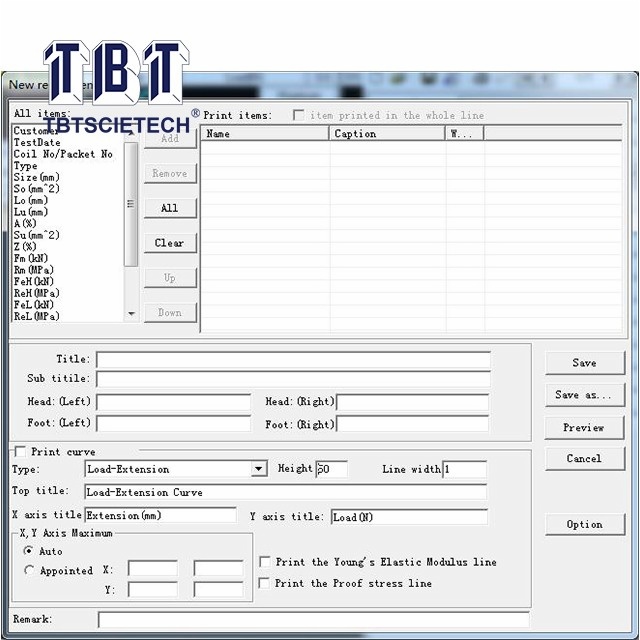

After test, all these indexes can be automatically calculated according to test parameters before test through computer and display test results. All test parameters can be both inquired and printed.

1. Hand-held controller to adjust moving speed of the cross beam flexibly;

2. Function of automatic return to the original position, intelligent, high efficient, quick;

3. Protective functions of limit position protection and over voltage, over current protection, reliable, safe;

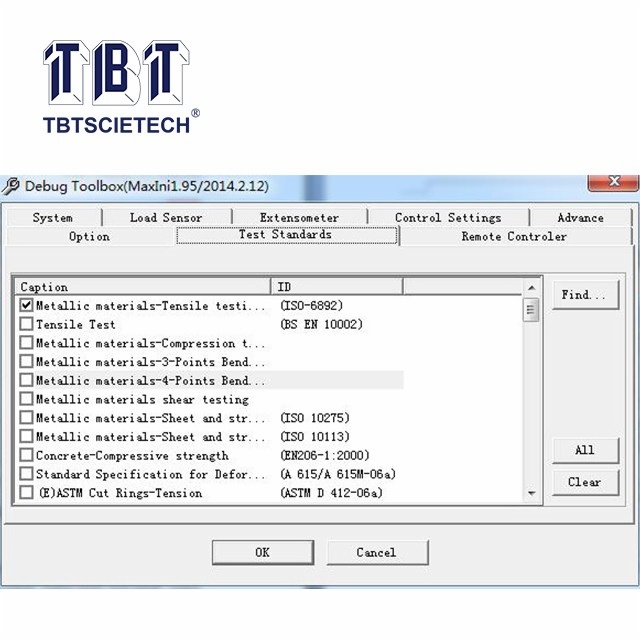

4. Powerful test database, in which test data can be saved, inquired and called;

5. Various control modes of constant rate control to load, stress, deformation, strain, stroke, elongation, low cycle and self-programming control;

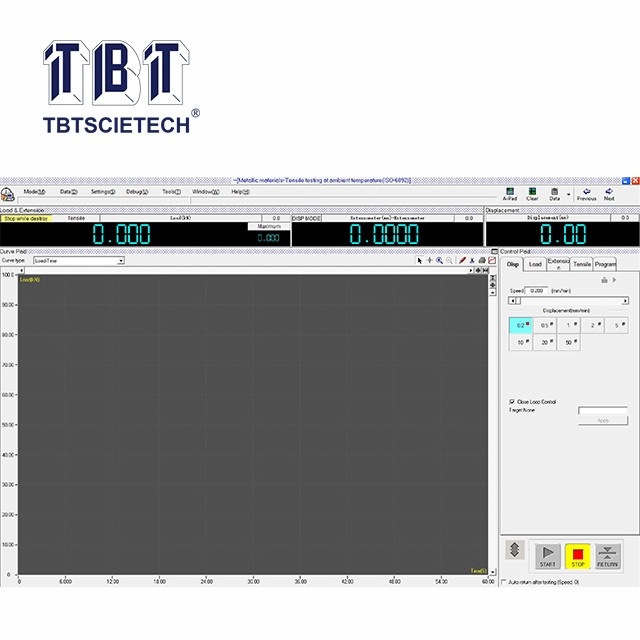

6. Switching function among many test curves: stress-strain, load-deformation, load-displacement, load-time, deformation-time, displacement-time, load-strain;

7. With functions of partial enlargement, superposition and comparison;

8. If device is equipped with other accessories, it can perform tensile, compression, bending, torsion and other mechanical property tests;

9. Limit position protection function;

10. Over current protection function;

11. Safe emergency stop function.

Load capacity	200kN
Load cell class	Class 0.5
Measuring range of load	0.4%~100%F.S
Load resolution	1/300,000F.S
Measuring range of deformation	0.2%~100%F.S
Relative error of indicating value	Within ±1.0%
Max. crosshead speed	300mm/min
Width of test space	610mm
Travel of crossehead	1200mm(without grips)
Control method	Computer automatically control
Power supply	380V, 50Hz

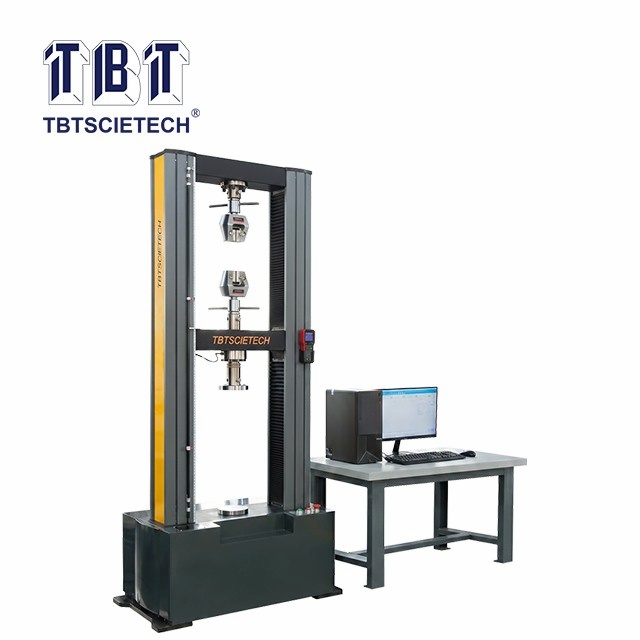

Electronic Universal Testing Machine with PC control TBTWDW-200H
