Notch Profile Projector Manufacturer

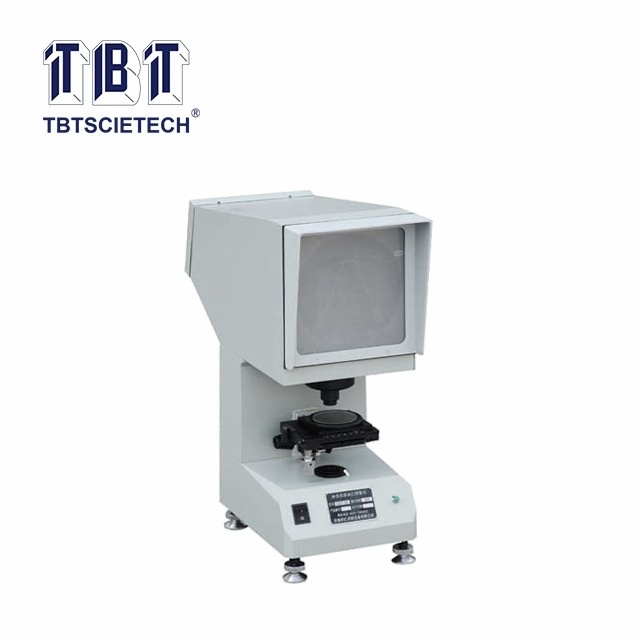

Notch Profile Projector TBTXT-50

Item Code:TBTXT-50 Features:TBTXT-50 is used to 50-times amplify V or U notch of specimen and project them to the screen to further check the profile & shape of notch, compare with standard template to determine it qualified or not.

Description
Referring Standard
Features
Technical Specification

TBTXT-50 is used to 50-times amplify V or U notch of specimen and project them to the screen to further check the profile & shape of notch, compare with standard template to determine it qualified or not.

ASTM E23, ISO 148

Diameter of the Screen	180mm
Light source(tungsten halogen lamp)	12V,100W
Magnification	50X
Objective magnification	2.5X
Projection objective magnification	20x
Working table square shape	110x125mm
Diameter of round worktable	90mm
Diameter of plate glass	70mm
Stroke of working table	Longitude: ±10mm
	Latitude:±10mm
	Rise and fall: ±12mm (without scale)
Rotation range of worktable	360° (without scale)
Size	Around 515×224×603mm
Weight	Aruond 18kg
Power supply	220V, 50Hz
