Metallographic Sample Grinding and Polishing Machine Manufacturer

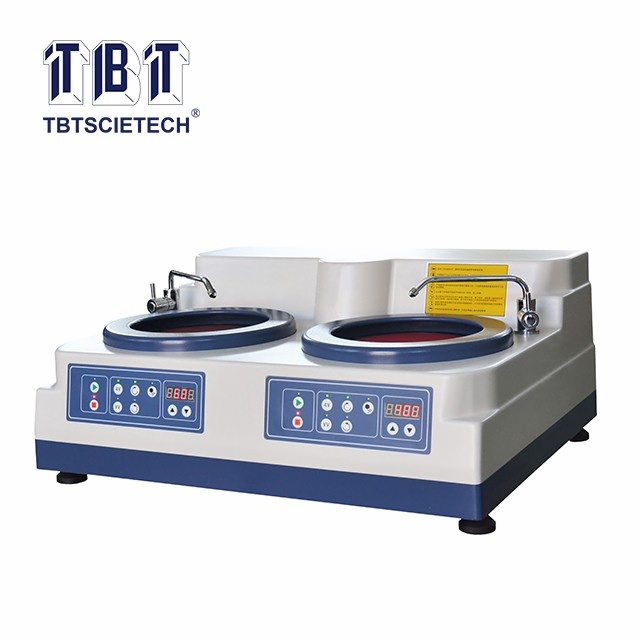

Metallographic Sample Grinding and Polishing Machine TBTYMP-2

Item Code:TBTYMP-2 Features:TBTYMP-2 is a single-chip microcomputer controlled grinding and polishing machine, two discs are independently controlled for sample preparation machine in the laboratory.

Description
Referring Standard
Features
Technical Specification

TBTYMP-2 is a single-chip microcomputer controlled grinding and polishing machine, two discs are independently controlled for sample preparation machine in the laboratory.

1.Durable ABS material shell for anti-corrosion;

2.Rigid chassis design ensures the precision rotary balance;

3.It has stepless speed or four speed control and can change the rotational direction;

4.DC brushless motor which has long service life and low noise and powerful motor brings strong power and efficient grinding and polishing;

5.Spindle leak-proof design ensures the bearing without damage;

6.Adjustable cooling water tube direction for wet grinding;

7.The grinding disc bottom has washing function which can prevent the accumulation and precipitation of grinding materials;

8.It can complete various sample grinding, fine grinding and polishing process via different abrasive paper and polishing cloth.

Disc size	Diameter 230mm
Abrasive paper size	Diameter 230mm
Speed	Stepless speed 100~1400r/min or Four speed 300, 600, 900, 1400r/min
Rotational direction	Clockwise or counterclockwise
Electromotor	DC brushless motor
Control and display	Film key operation , nixie tube display, with washing function
Size	757×660×330mm
Weight	57kg
Power supply	220V, 50Hz, 8A
