cover Compression Testing Machine Manufacturer

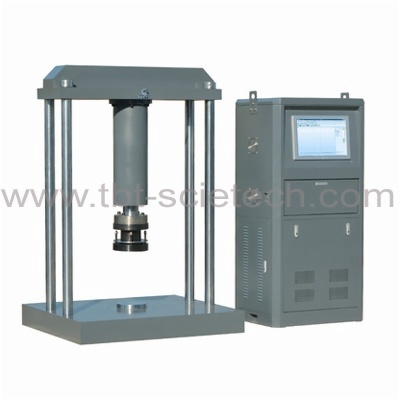

cover Compression Testing Machine TBTWC-600A

Item Code:TBTWC-600A Features:

Description
Referring Standard
Features
Technical Specification

This machine use hydraulic power drive, servo control technology, PC data processing, and automatically realize the well cover test with high accuracy.
Features
1. Four-column loading frame, with features of high stiffness, high stability, small deformation.
2. Upper oil cylinder, larger test space, easy for installation of specimen.
3. Automatic, manual and set load operation function.
4. With high precision load sensor.

Max.Capacity	600KN
Accuracy Class	Better than Grade 1
Relative error	±1%
Effective measuring range	2%-100%F·S
Deformation relative error	±1%
Deformation measuring resolution	0.001mm
Max distance between compression platen	600mm
Effective distance between the two columns	1010mm
Piston stroke	400mm
Max speed of the piston	120 mm/min
Size of upper platen	Φ250 mm
Size of lower platen	Φ200 mm
Power	1.8KW（pump motor1.5KW）
