Overall Index:

L*W*H: 850*900*1900mm

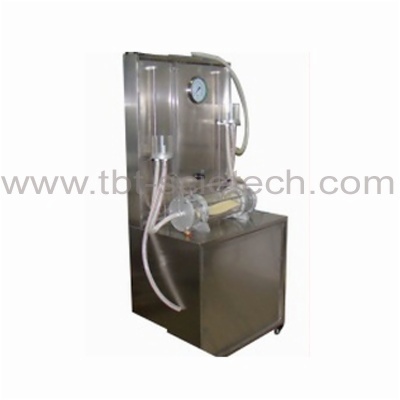

The machine whole made of stainless steel(No.304 which thickness is 1.1mm), with smooth surface and no corrosion.

Component:

1. permeability pressure chamber: include alum.alloy pressure chamber, organic-glass container, pressure plate and latex gasket

2. normal force loading device: include pressure gauge(grade 0.4/stainless steel,0-0.6MPa), adjusting valve, switch, tube, loading frame and etc.

3. permeability piezometer pipe, water input switch, water adjusting device

Specification:

1.specimen size：Width:100mm，thickness:3-10mm；

2.specimen length: 40mm；

3.normal force: 0~500kPa 。

4. constant head adjusting range: 0~800mm 。

5. All made of stainless steel





specimen size	Width:100mm Thickness:3-10mm
Specimen length	40mm
Normal force	0~500kPa
Constant head adjusting range	0~800mm



All made of stainless steel
