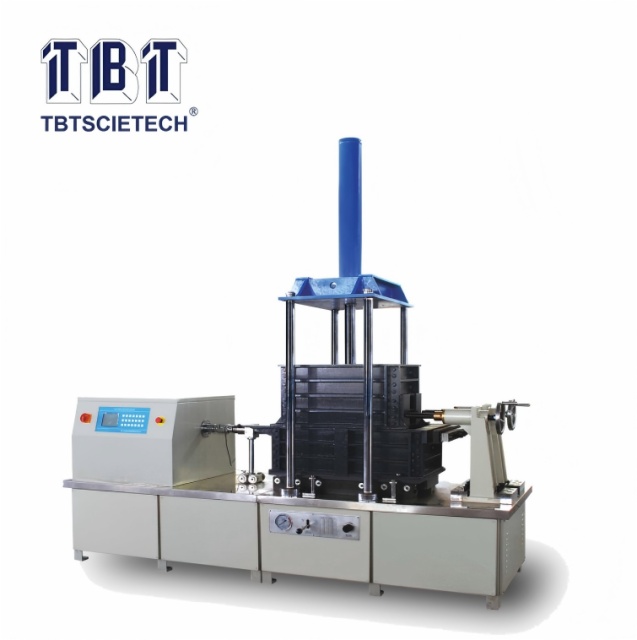

    DIRECT SHEAR & PULLOUT TESTER FOR GEOSYNTHETICS TBT1280

    DIRECT SHEAR & PULLOUT TESTER FOR GEOSYNTHETICS
    Item Code:TBT1280 Features:TBT1280 Direct Shear & Pullout Tester for Geosynthetics is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil by the direct shear test and by the pullout test separately. It is suitable to geotextiles, geomembranes, geonets and georids. Related Standards: Direct shear test: ISO 12957.1, ASTM D5321 Pullout test: ASTM D6706
    • Description
    • Main Specifications
    • Accessories

    Specification：

    Upper shear box size 300×300mm or 600×400mm or as specified
    Lower shear box size 300×300mm or 800×400mm or as specified
    Pullout box size 250×200mm or 600×400mm or as specified
    Normal stress 0~400KPa or 0~600KPa or as specified
    Normal stress adjusting accuracy ±0.02
    Method to load normal stress Hydraulic loading, adjust manually
    Horizontal driving mode Servo motor
    Shear/Pullout rate 1~10mm/min
    Horizontal displacement range 0~100mm
    Displacement accuracy 0.1mm
    Data output mode Printed or displayed on computer
