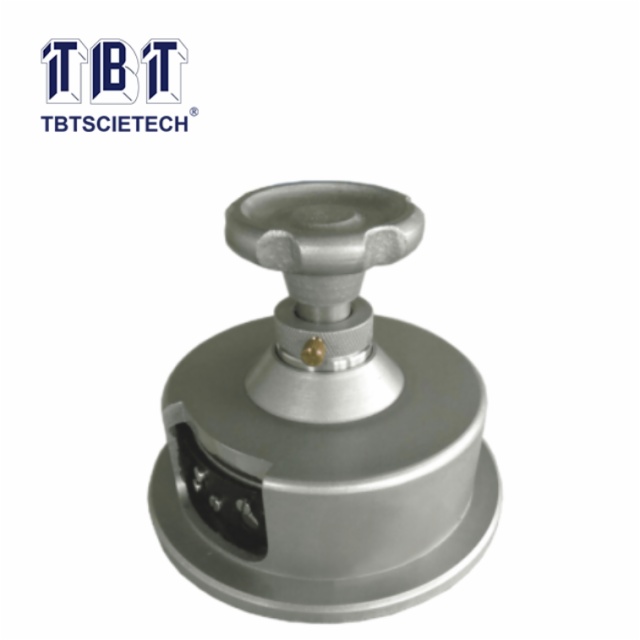

Series Sample Cutter Z01B

Item Code:Z01B Features:
  • Description
  • Main Specifications
  • Accessories

Sample Cutter. To cut out circular specimens of fixed diameter rapidly, accurately and safely. Virtually any type material can be accommodated, including woven, non-woven and knitted textiles, carpet, film, foam, plastics, paper and board.

Cutter body uses Aluminum alloy shaped by extrude molding.

Provided with screw to adjust height of blade, also fitted with lock bolt for safe operation.

Use GILLETTETM  Blade, Easy to change and maintain.





Available area  100 cm2 (Z01B), 11.3cm2 (ZB01KI), 154 cm2 (ZB01KII)
Specimen thickness <5mm
Cutting depth 0~5mm
Specimen diameter ø112.8mm (Z01B), ø38mm (ZB01KI), ø140mm (ZB01KII)
Instrument Weight  1.5kg (Z01B), 1.2Kg (ZB01KI), 2.0Kg (ZB01KII)
