Road Surface Profiler (RSP) Manufacturer

Description
Referring Standard
Features
Technical Specification

Pavement roughness, as the main factor of dynamic loads which from vehicle movement, can expedite deterioration of pavement as well as wear and tear of vehicles. By using RSP, the pavement roughness can be determined as IRI.

TBTPQL with different modular can be used to measure other parameters of pavement, such as SMTD/MPD, RUT etc. which our model TBTPQL-A/C/D can do.

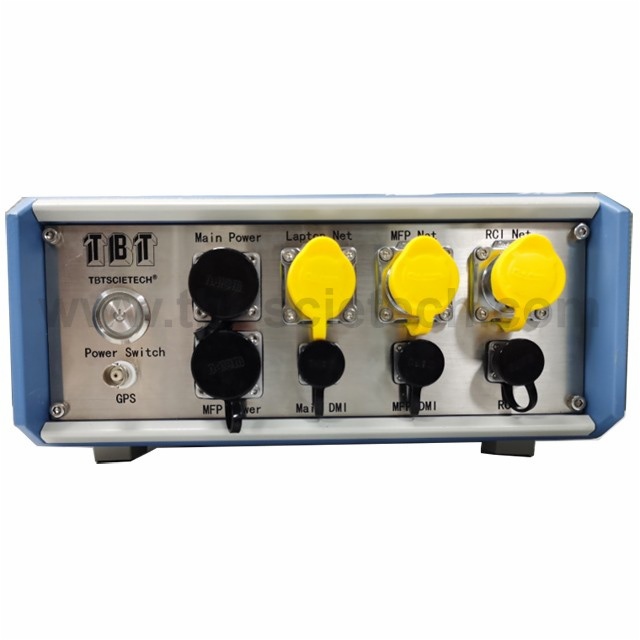

TBTPQL series Road Surface Profiler(RSP) adopts laser sensor and accelerometer combination to measuring the longitudinal profile; It's a real time, continuous measuring device for collecting data of pavement condition.

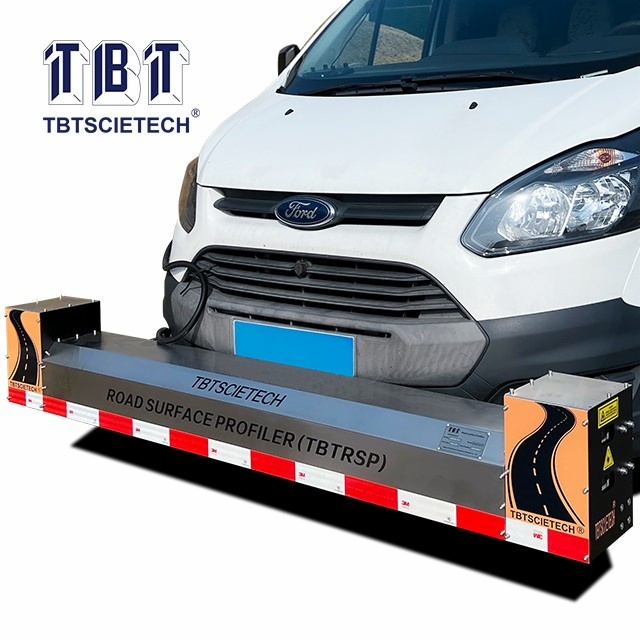

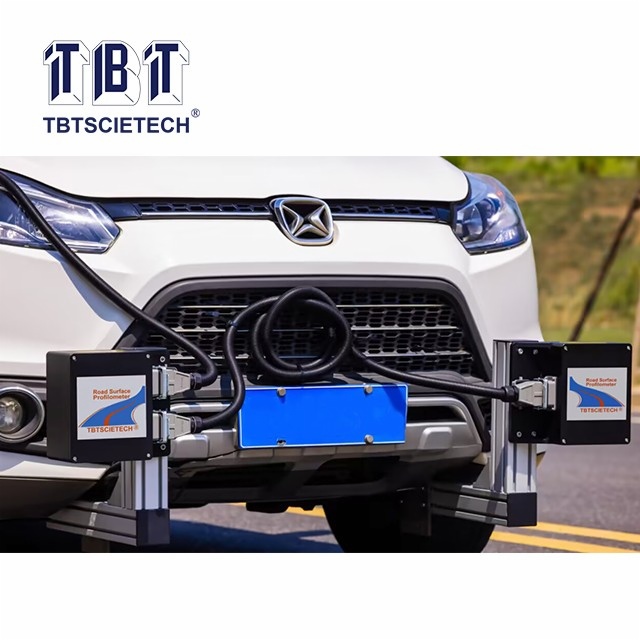

It's a real time continuous measuring device which installed in the front of vehicle, easy installation and operation;

TBTPQL Series Road Surface Profiler(RSP) can be equipped together with devices to realize the measurement for road damage such as crack detection(LCMS).

ASTM E950, ASTM E1926, ASTM 184, ASTM 1489, AASHTO R56

1. Modular system, easy for maintenance;

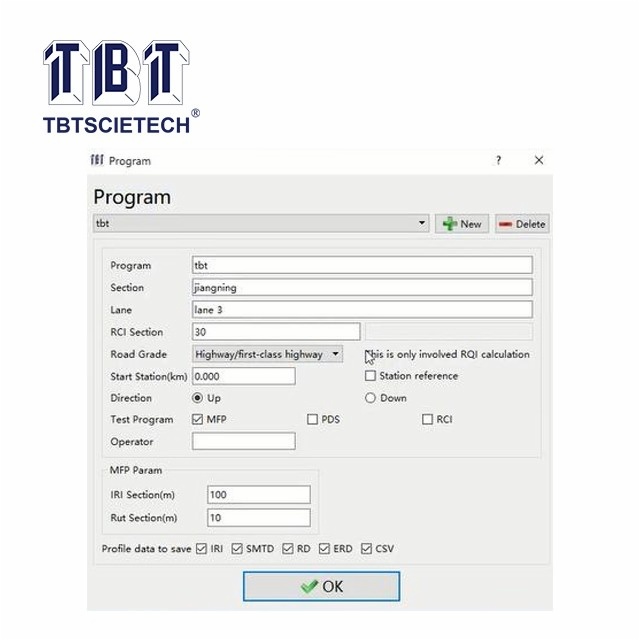

2. Real-time data collection for IRI, σ, RN, RQI, SMTD/MPD, RUT, speed etc.

3. Testing at traffic speed enables faster measuring and saving time;

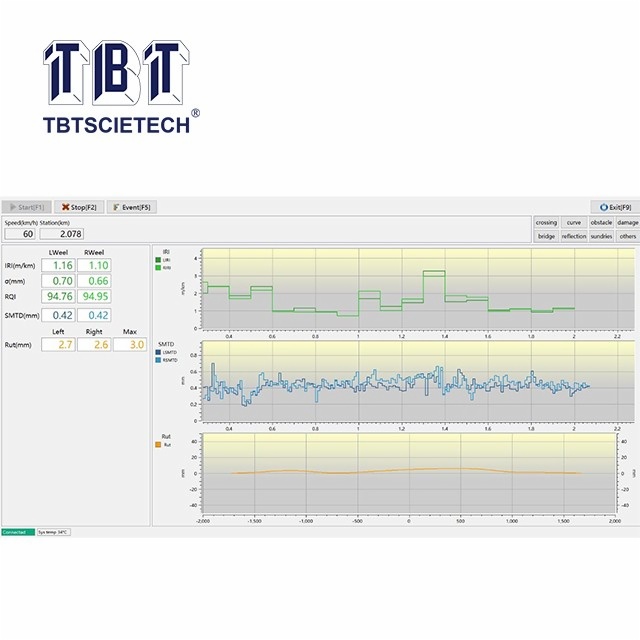

4. Real time graph display;

5. Adopts imported sensor and accelerometer

6. Cover lane width of 3500mm

7. Accords to ASTM E950 Class 1 profiling;

8. Adapt to third party analysis software such as ProVal

9. With GPS built-in, get coordinate in real time(for model TBTPQL-A/D/F)

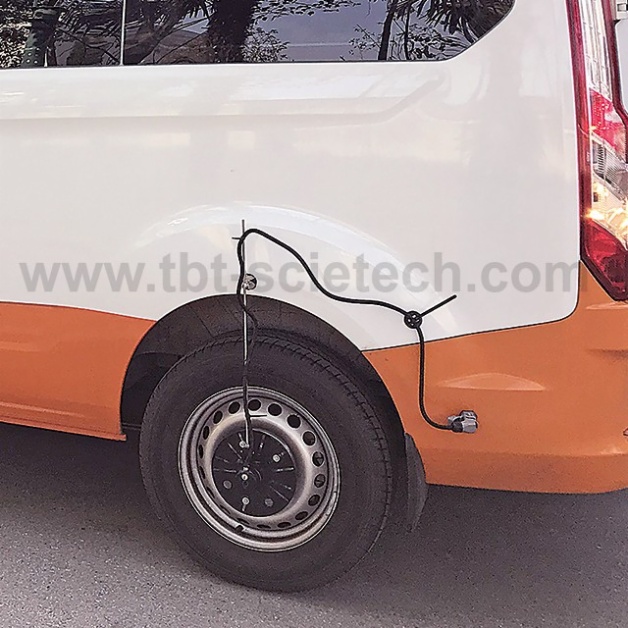

10.With DMI installed on rear wheel, easy for surveying the distance;

11. Laser sensor can be extended up to 17pcs and min. to 7pcs.

No.	Description	Specification
1	Testing project	IRI, RN, SMTD(MPD)
2	Laser(IRI/RUT)	Riftek (from Republic of Belarus)
	IRI Laser model no.	RF603 125/500
	RUT laser model no.	RF603 245/1000
	Frequency	9.4kHz
	Ground clearance	375/745mm
	Measuring range	±250/500mm
	Resolution	＜0.05mm
	Protection level	IP 67
	Accuracy	＜0.5mm
3	SMTD laser	KEYENCE
	Laser model	LK-G400
	Ground clearance	400mm
	Respond frequency	20kHZ
	Measuring range	±100mm
	Resolution	0.05mm
	Protection level	IP 67
	Linearity	±0.1% F.S.
4	Communication	Ethernet interface
5	Acceleration sensor	Lance (USA)
	Measuring range	±10g
	Resolution	0.00008g
	Frequency	0.7~7700Hz
6	Distance sensor	OMRON
	Pulse count	2000pulse/turn
	Protection level	IP54
	Measuring accuracy	±0.5m/km
7	Sampling interval	≥1mm
8	Vertical section testing accuracy	＜0.5mm
9	Vertical section wavelength	1mm~200m
10	IRI range	0~20m/km
11	IRI resolution	0.1m/km
12	SMTD resolution	0.01mm
13	SMTD accuracy	0.05mm
14	Wheel track testing range	0~200mm
15	Wheel track testing resolution	0.1mm
16	Cross section lane width	3500mm
17	Size	Basic part: 1.6m Removable part: 164mm
18	Testing speed
	IRI	0~100km/h
	SMTD	0~70km/h
	Wheel track	0~70km/h
