    Retroreflectometer for Road Marking TBTRMR-MINI

    • Retroreflectometer for Road Marking
    • Retroreflectometer for Road Marking
    • Retroreflectometer for Road Marking
    • Retroreflectometer for Road Marking
    Retroreflectometer for Road Marking
    Retroreflectometer for Road Marking
    Retroreflectometer for Road Marking
    Retroreflectometer for Road Marking
    Item Code:TBTRMR-MINI Features:TBTRMR-MINI adopts an ultra-compact design to provide operators with a truly portable experience. It is used to determine the retroreflective properties by simulating the process in which vehicle headlamps illuminate the road/airport markings and then reflect light back to the driver.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

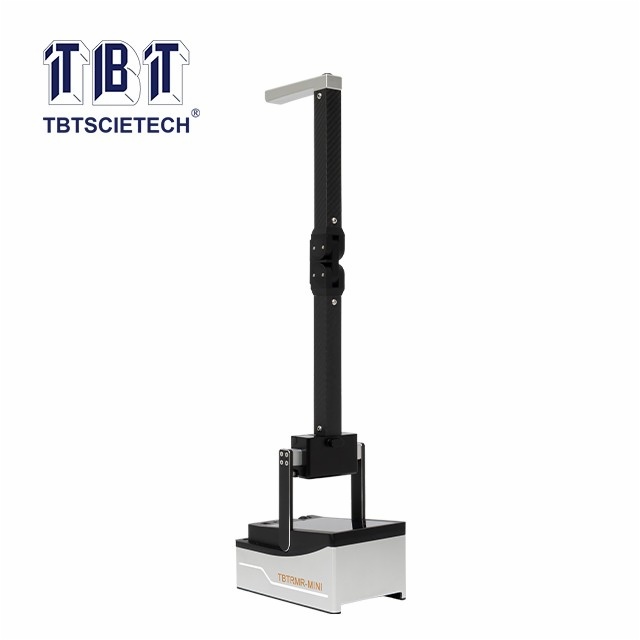

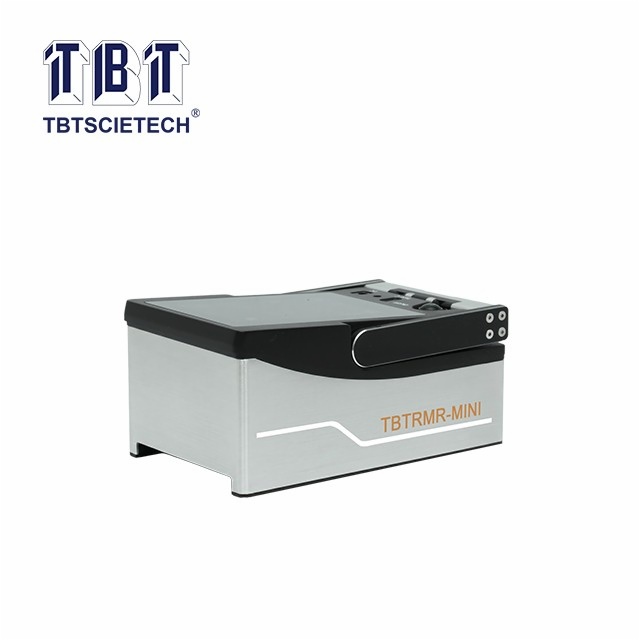

    TBTRMR-MINI adopts an ultra-compact design to provide operators with a truly portable experience.
    It is used to determine the retroreflective properties by simulating the process in which vehicle headlamps illuminate the road/airport markings and then reflect light back to the driver.
    It supports the comprehensive measurement of daytime visibility (Qd), nighttime visibility (RL), RL under standard conditions of wetness and continuous wetting.

    ASTM E1710(RL), ASTM E2177(RL wetness), ASTM E2832(RL continuous wetting)

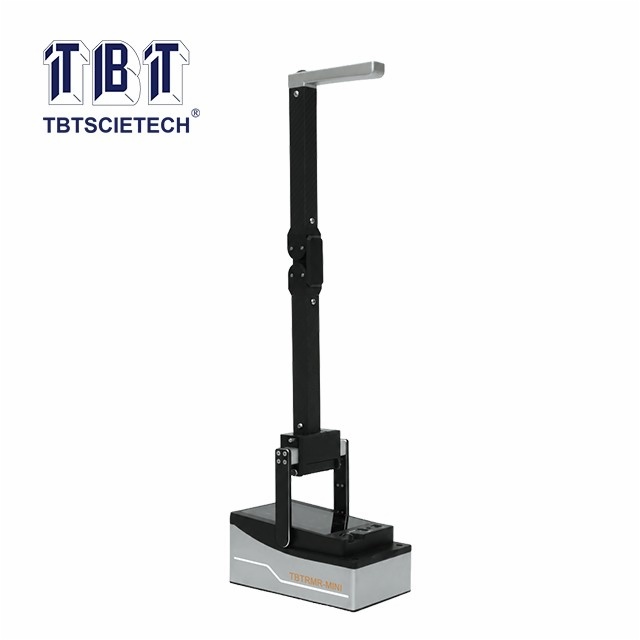

    1.Ultra-Lightweight 1.8kg device + 0.65kg foldable handle;
    2.Imported sensor to ensure measurement accuracy;

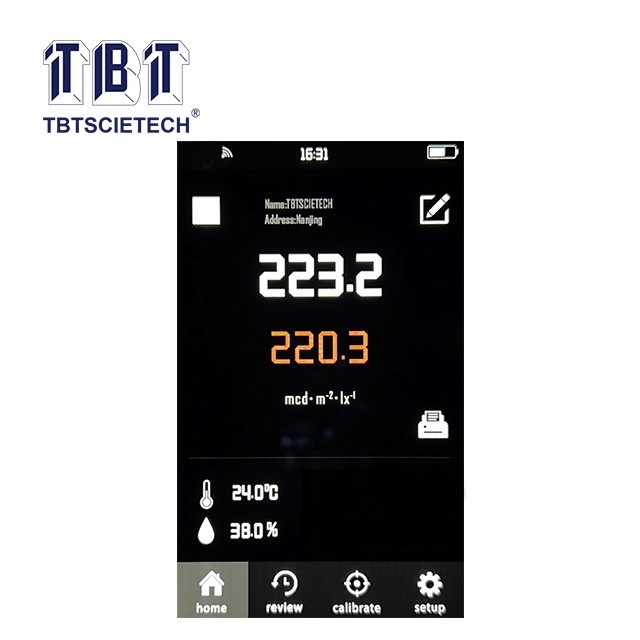

    3.Color touch screen for real-time information display;
    4.Average calculation & data assessment for measurement results;
    5.Bluetooth printer, exporting test data to PC and displaying measurements on Google Earth;
    6.Multi-language interface available.

    Measurement range

    RL(mcd•m-2•lx-1): 0~4000

    Equivalent observations distance

    30m

    Illumination angle RL

    ASTM E1710: 88.76°

    EN 1436: 1.24°

    Observation angle RL

    ASTM E1710: 1.05°

    EN 1436: 2.29°

    Light source color temperature

    2856±50K

    Error of repeatable measurement

    ≤2%

    Continuous working time of battery

    >30h

    Data storage space

    More than 100,000pcs records

    Built-in battery capacity

    12V / 5.2Ah

    Charger

    DC 15V

    Working temperature & humidity

    -15℃~+60℃; <98%RH, no frost

    Size

    Approx. 200x120x90mm

    Weight

    Approx. 1.8kg
