LCD Display Oxygen Bomb Calorimeter Manufacturer

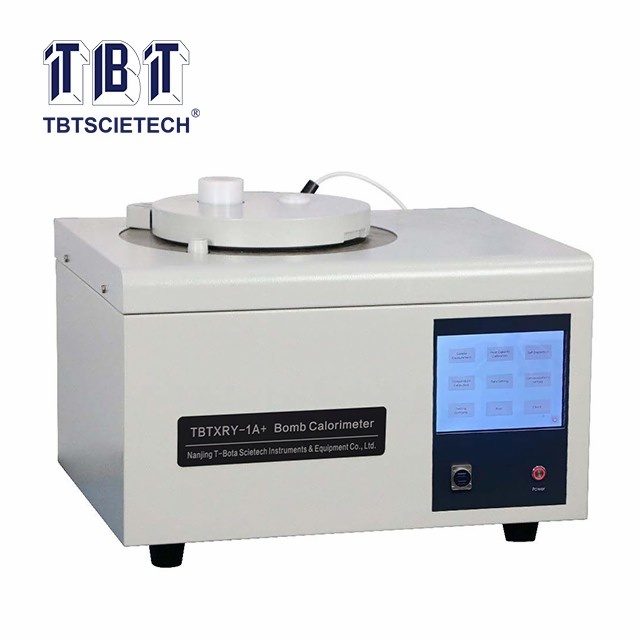

LCD Display Oxygen Bomb Calorimeter TBTXRY-1A+

Enlarge

Item Code:TBTXRY-1A+ Features:TBTXRY-1A+ is used to determine calorific value of combustible materials(heat capacity is 14000~15000J/K) such as petroleum products without water(gasoline, jet fuels, diesel oil & fuel oils), coal, coke and paraffin, etc.

Description
Referring Standard
Features
Technical Specification

TBTXRY-1A+ is used to determine calorific value of combustible materials(heat capacity is 14000~15000J/K) such as petroleum products without water(gasoline, jet fuels, diesel oil & fuel oils), coal, coke and paraffin, etc.

ASTM D240

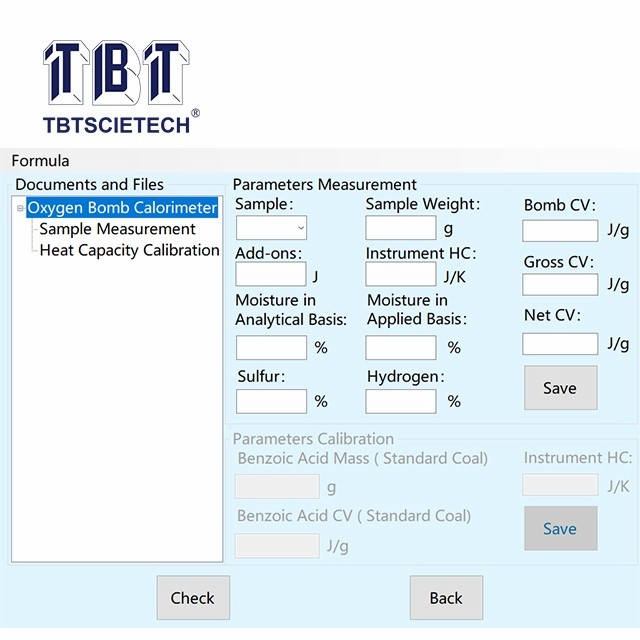

1.It has LCD touch screen, high accuracy temperature sensor and high performance A/D conversion device;

2.Controller has fully automatic test procedure. After place the sample and set correct parameters, the device will finish all the procedures and print final test data without manual intervention;

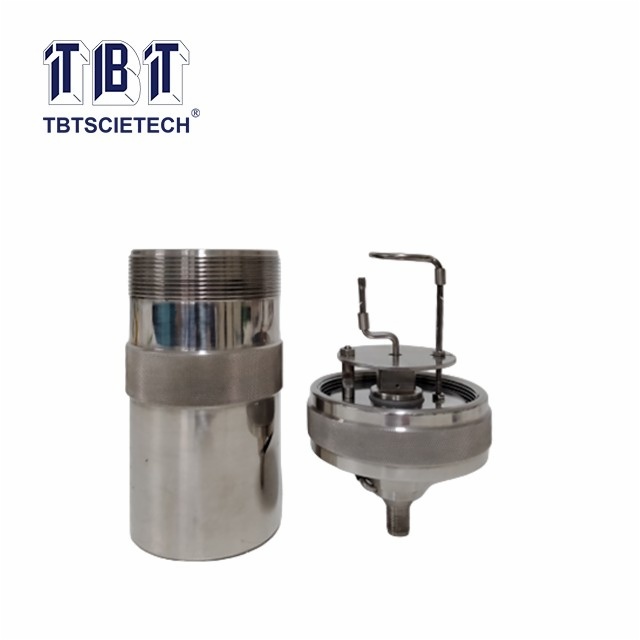

3.Sealed oxygen bomb whole structure adopts stainless steel material. The strength is enough to resist 20MPa hydrostatic test under room temperature;

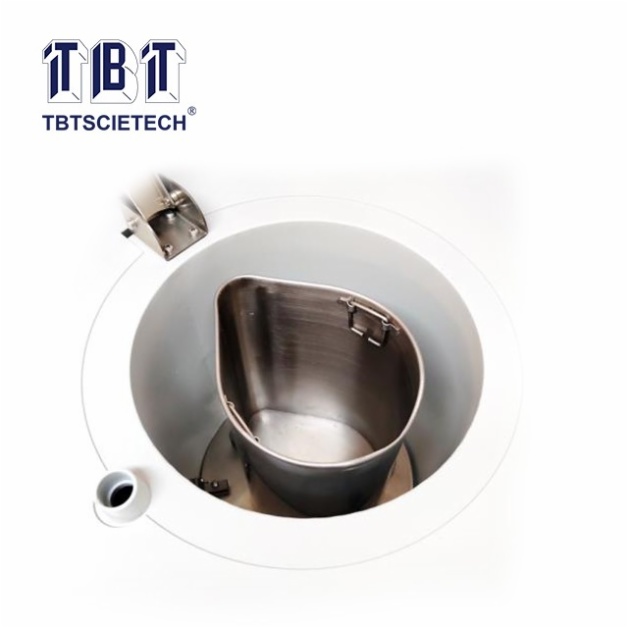

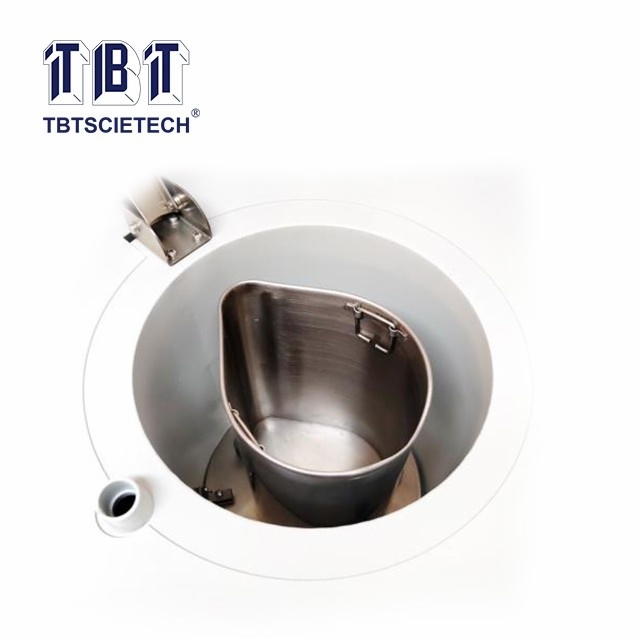

4.The inner water cylinder is full stainless steel material. The cross section is pyriform and the capacity is 3kg;

5.The water cylinder is equipped with electric stirrer inside which ensures the uniform temperature;

6.The external water jacket is double container. It will be filled fully with water when testing,and the stirrer in the water jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.

Heat capacity	14000~15000J/K
Resolution	0.001K
Measurement accuracy	≤60J/g
Repeatability	≤0.2% (Grade C)
Pressure endurance of oxygen bomb	20MPa
Data storage capacity	31 pieces
Temperature measurement range	10~35℃
Working temperature & humidity	15~28℃(the fluctuation is not more than 1℃ during one test), ≤85%RH
Power supply	220V, 50 Hz
