Carbon Residue Tester Manufacturer

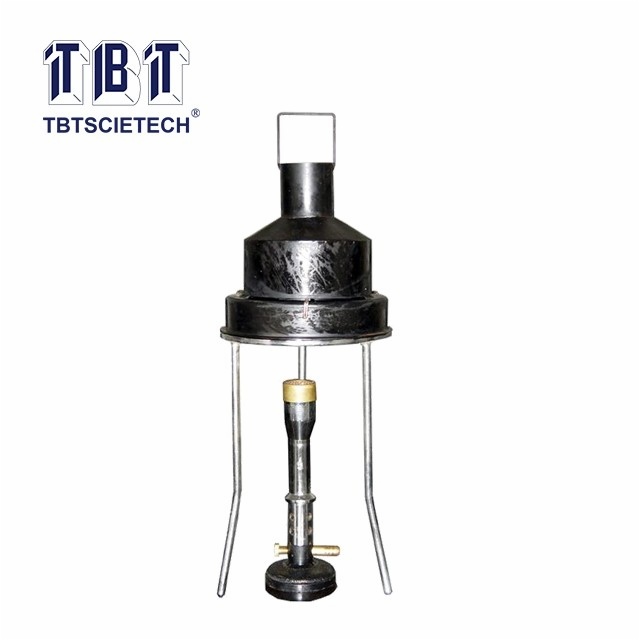

Carbon Residue Tester TBT-268

Item Code:TBT-268 Features:TBT-268 is designed referring to ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.

Description
Referring Standard
Features
Technical Specification

TBT-268 is designed referring to ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.

It is used to determine the amount of carbon residue of petroleum products after evaporation and pyrolysis, so as to check coke forming property of petroleum products.

ASTM D189

Simple design with full accessories, the test can be done as loon as equip civil gas.

Porcelain crucible	About 30ml
Inner iron crucible	About 75±5ml
Outer iron crucible	About 190±10ml with cover
Supporter	Height: 250±10mm Bore diameter: 130±5mm
Flame shield	Diameter of upper port: 90±2mm Diameter of lower port: 82±2mm
Round iron cover	The height of underpart is 50~53mm The height of cone in the middle is 25±2mm There is a piece of Ф3mm iron wire as the fire bridge on the top The height is 50±3mm as the indicator of Max. height
Blowtorch type	Gas torch
Size	Ф130mm×400mm
