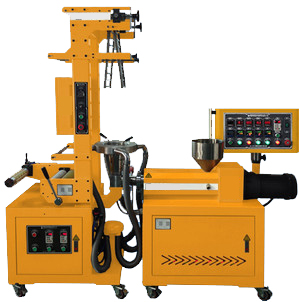

This machine structure is compact, simple operation, sibgle and multi-layer blown film, can be applicable to all polimer dispersion research.
Screw diameter
|
20
|
Rotation speed of screw
|
0-95rpm
|
Length ratio
|
1:28
|
Main Motor
|
2.2KW
|
Screw material
|
38CrMoAL chromium-molybdenum steel
|
Volume W×D×H
|
Around 1250×500×940mm
|
Power supply
|
AC380V, 3 phase
|
Film Blowing Auxiliary Machine
Die diameter
|
30
|
Air blowing
|
Compressed air 0-6bar
|
Air cooling
|
Air blower flow 30L/min
|
Traction roller size
|
80*320mm
|
Traction winding speed
|
0.5-5m/min
|
Max film folding diameter
|
150mm
|
Traction motor
|
90W
|
Winding torque motor
|
3.5N.m
|
Fan
|
0.25Kw
|
Dimension
|
800X700X2050mm
|
Power supply
|
AC380V, 3 phase
|
Weight
|
215kg
|
