    In-situ CBR Test Apparatus TBTLCB-3

    In-situ CBR Test Apparatus
    Item Code:TBTLCB-3 Features:TBTLCB-3 In-situ CBR Test Apparatus is a robust, field-ready assembly used for determining the bearing capacity of soil in-place.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

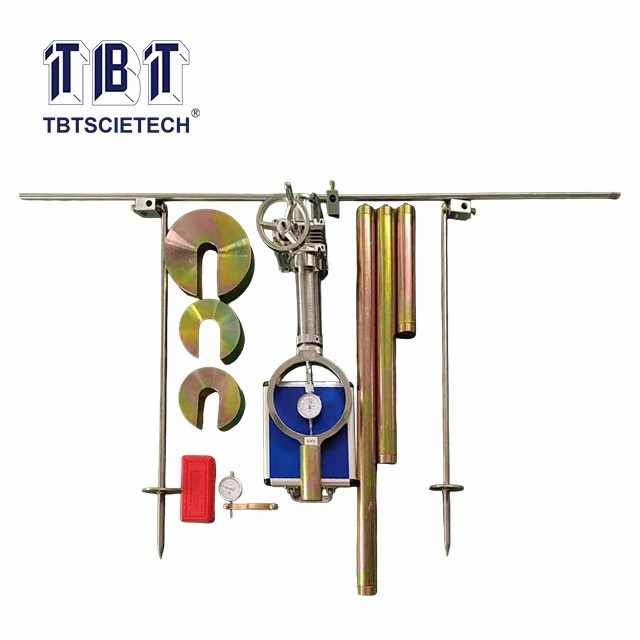

    TBTLCB-3 In-situ CBR Test Apparatus is a robust, field-ready assembly used for determining the bearing capacity of soil in-place. The system typically includes high-capacity 50kN mechanical jack, load ring, standard penetration piston, dial gauges for depth and load measurement.
    It is designed to be braced under heavy vehicles, such as loaded trucks or pickup, for conducting tests on subgrades and base courses.

    Mechanical jack capacity

    50kN

    Load ring capacity

    50kN

    CBR penetration piston

    ASTM-50.8mm/BS-50mm

    Mechanical dial gauge

    30x0.01mm

    Dial gauge installation spare

    Dial gauge stand

    Weight

    U shape 1pc 4.5kg, 1pc 9kg; O shape 1pc 4.5kg

    Measuring bridge

    2m (2 sections)

    Connector

    Ball seat
