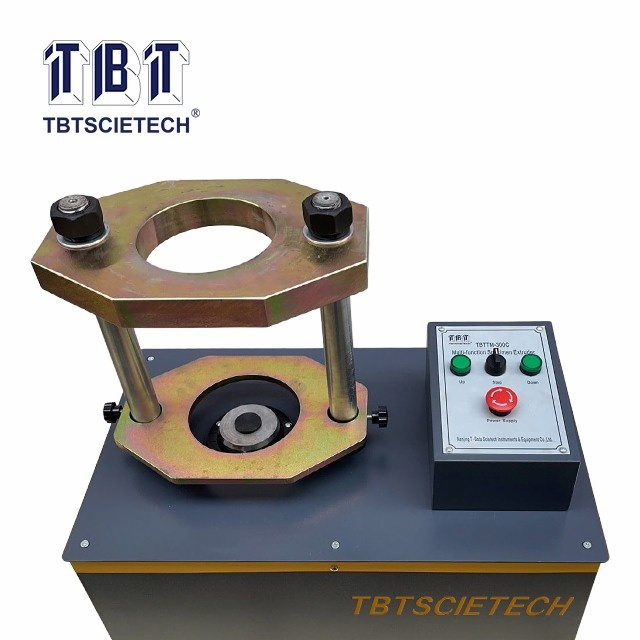

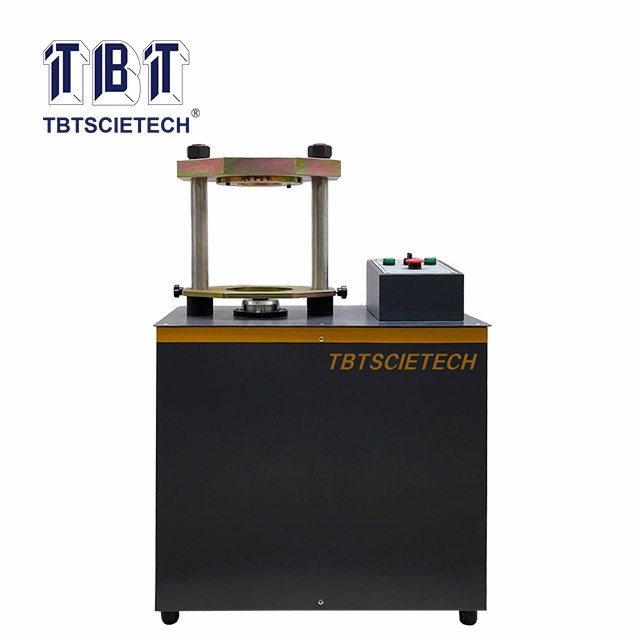

    Electric Hydraulic Multi-function Specimen Extruder TBTTM-300C

    • Electric Hydraulic Multi-function Specimen Extruder
    • Electric Hydraulic Multi-function Specimen Extruder
    Electric Hydraulic Multi-function Specimen Extruder
    Electric Hydraulic Multi-function Specimen Extruder
    Item Code:TBTTM-300C Features:TBTTM-300C is suitable for demoulding geotechnical compaction specimens, Marshall compaction specimens, and unconfined compression specimens.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTTM-300C is suitable for demoulding geotechnical compaction specimens, Marshall compaction specimens, and unconfined compression specimens.

    1.It adopts rigid frame for long term use;
    2.20tons large force and Max. 150mm/min rising rate;
    3.The hydraulic power unit adopts gear-pump integrating design;
    4.Easy operation panel;
    5.It provides different plate for demoulding different moulds.

    Oil tank capacity

    Rated capacity 8L

    Rising rate

    90~150mm/min

    Demoulding plate for mould size: Φ50, Φ100; Φ101.6, Φ150, Φ152.4mm

    Support customized plate for other mould size

    Maximum demoulding height

    240mm

    Size

    Around 690×410×1020mm

    Power supply

    220V, 50Hz



    Other Products

    Product Name:
    ASTM/BS CBR Mould
    Model:

    Description:
    CBR mould with collar and perforated base CBR Swell accessories supplied with collar and base plate... CBR mould
    Product Name:
    Full Automatic Triaxial Test Apparatus
    Model:
    TBTTSZ-1
    Description:
    TBTTSZ-1 automatic triaxial apparatus with latest modern technology set the machinery, electronics, automatic control technology, automatic sensor detection technology and computer technology in one.
    Product Name:
    Riffle Box(Sample Splitter)
    Model:
    TBTSRB
    Description:
    TBTSRB riffle boxes(sample splitters) are used to divide representative dry samples into the required batch sizes for the further test.
    Product Name:
    Automatic Consolidometer
    Model:
    TBTGZQ-MC
    Description:
    TBTGZQ-MC Automatic Consolidometer is an advanced geotechnical testing apparatus designed to determine critical soil mechanics parameters, including the coefficient of compressibility (av), modulus of resilience (ES), coefficient of consolidation (CV), and preconsolidation pressure (PC).
    Product Name:
    Hydraulic Extractor
    Model:
    TYT-3
    Description:
    TYT-3 consists of a pressure frame and a 5 ton hydraulic jack. With simple structure, convenient operation and light weight.
    Product Name:

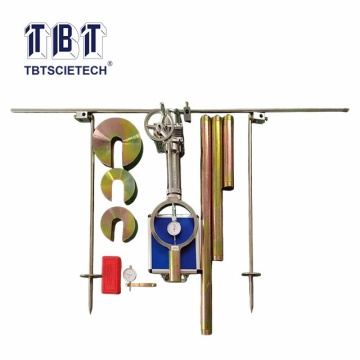

    In-situ CBR Test Apparatus
