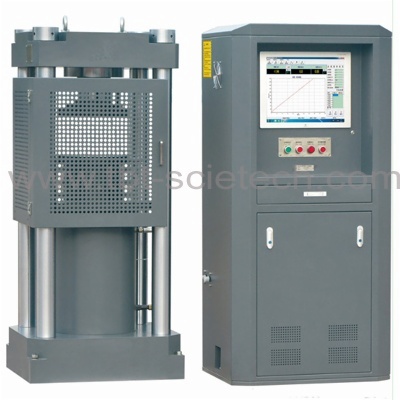

Compression Testing Machine with PC&Servo Control TBTCTM-2000ASI

Item Code:TBTCTM-2000ASI Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

This series of products hydraulically loaded, using electro-hydraulic servo technology for cement, concrete and other materials for compressive and flexural testing under nominal test force,can accordance with the appropriate standards and meet the standards set loading rate loading rate control targets, with load, time and test curve dynamic display and control functions in a timely manner and the maximum test force function.

This series of products on a computer equipped with monitoring software can automatically strike a compressive strength test data and automatically print out the complete test report and test curves.

Model

TBTCTM-2000ASI

Max capacity(KN)

2000

Indication accuracy

1(0.5)

Piston control method

unidirectional

Sensor type

Column load

Space adjustment method

Pad adjustment

Max Compression space(mm)

360

Piston stroke(mm)

200

Compression platen dimensions(mm)

Φ300

Host dimentions(mm)

640*560*1500

Demensions of Oil source cabinet(mm)

700*540*1500

Power(KW)

2.0

Total Weight(kg)

1500
