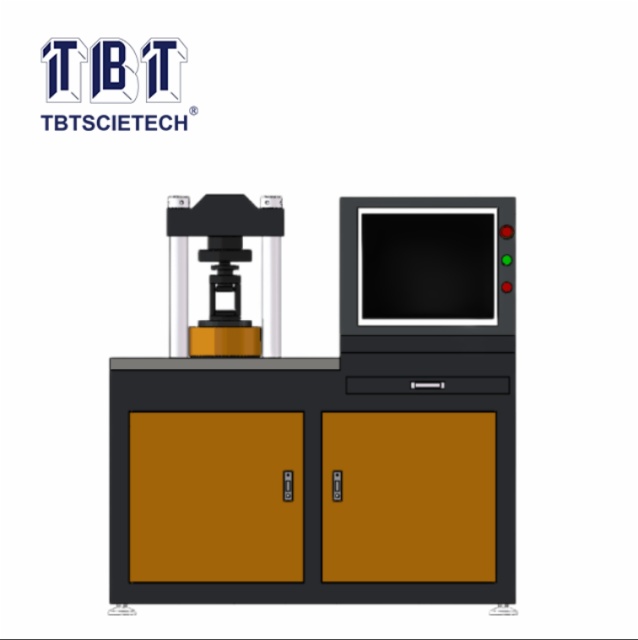

    Compression Testing Machine with PC Control& Auto Loading TBTCTM-300A

    Compression Testing Machine with PC Control& Auto Loading
    Item Code:TBTCTM-300A Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    The testing machine is designed for testing the compressive strength of cement mortar in accordance with the Standard GB17671-99 “the test regulation of cement mortar strength”. Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.

    It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed





    1 Maximum Capacity:

    300 kN

    2 Measuring range:

    0-300 kN

    3 Relative Error

    ±1%

    4 Loading rate:

    0-10.0 kN/s

    5 Max. Vertical clearance between platen

    180 mm

    5 Maximum travel of piston

    80 mm

    6 Diameter of piston

    Ф118 mm

    7 Rated pressure of oil pump

    30Mpa

    8 Power supply

    220VAC 750W















    1.         Oil Pump

    2.         Motor

             3.        O-ring
