Asphalt Rotary Evaporator(Electric Lifting) Manufacturer

Item Code:TBTRE-2 Features:

TBTRE-3 asphalt rotary evaporator(electric lifting) is suitable for experiment of evaporation, distillation or separation of chemicals.

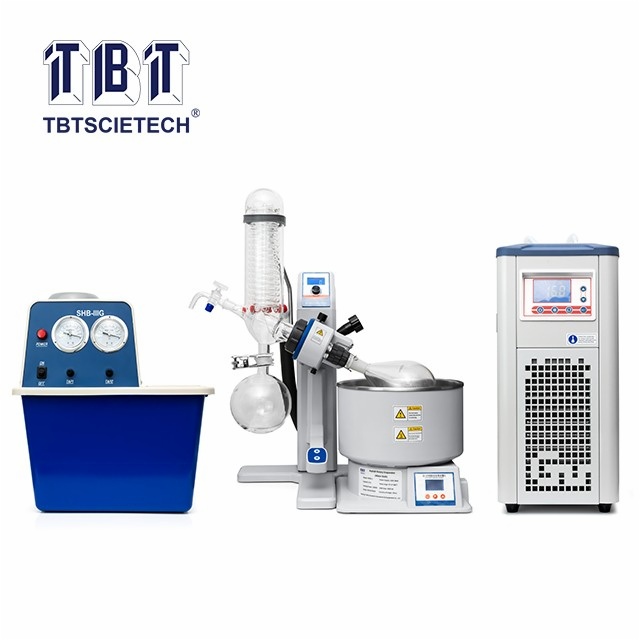

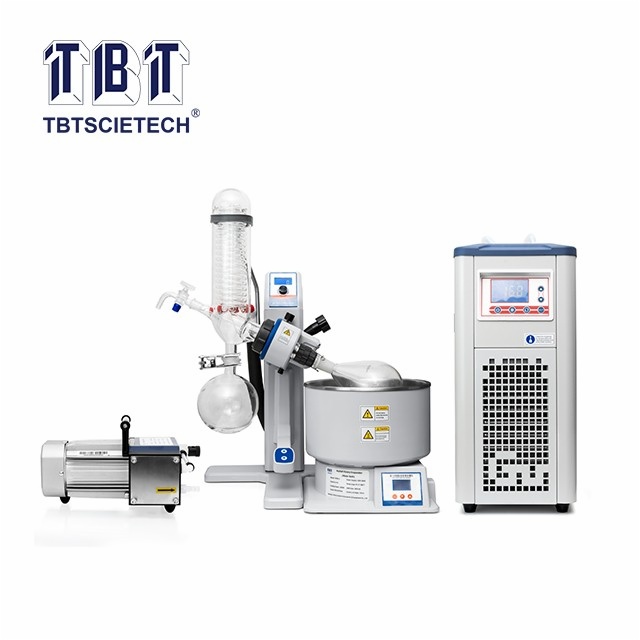

It usually works with vacuum pump and chiller as a whole system to meet the production and experimental requirements.

Features:

1. Double sealing of Teflon(PTFE) and FV rubber can ensure the negative pressure level;

2. The immersion angle of the evaporating flask is adjustable;

3. Evaporating flask are lifted automatically;

4. Specialized motor and nice structure design ensures the evaporating flask running smoothly and steadily;

5. PID controller ensures precise temperature control;

6. Digital display of rotation speed and bath temperature;

Rotation Speed	10-280rpm
Evaporating Speed	23.5ml/min (Water)
Pressure Rise Rate of Vacuum System	≤0.33kPa/min
Temperature Range	Room temp+5℃ ~95℃
Temperature Stability	±1.5℃
Temperature Control	Keypad input, Digital display
Speed Control	Knob setting, Digital display
Protection	Over-current protection, ground fault protection, over-temperature protection
Lifting	Automatic
Rotary Motor Power	40W
Heating Power	1300W
Condenser Type	Optional(Vertical or Diagonal)
Evaporating Flask	500/1000ml(Optional)
Receiving Flask	1000ml
Vacuum Sealing	Double sealing rings made of Telflon+Viton
Water Bath Size & Capacity	φ254*130mm, Max.5L
Lifting Distance	150mm
Ambient temperature	5-35℃
Overall Dimensions(mm)	Around 620400700(850)
Net Weight	13.5kg
Power Supply	220V, 50Hz
