    Bottle Rolling Machine TBTBR-40OS

    • Bottle Rolling Machine
    • Bottle Rolling Machine
    Bottle Rolling Machine
    Bottle Rolling Machine
    Item Code:TBTBR-40OS Features:TBTBR-40OS bottle rolling machine can be used for affinity test between aggregates and bitumen. It could simulate the effects of traffic and weather conditions on these materials by continuously rolling bottles with specimen inside.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

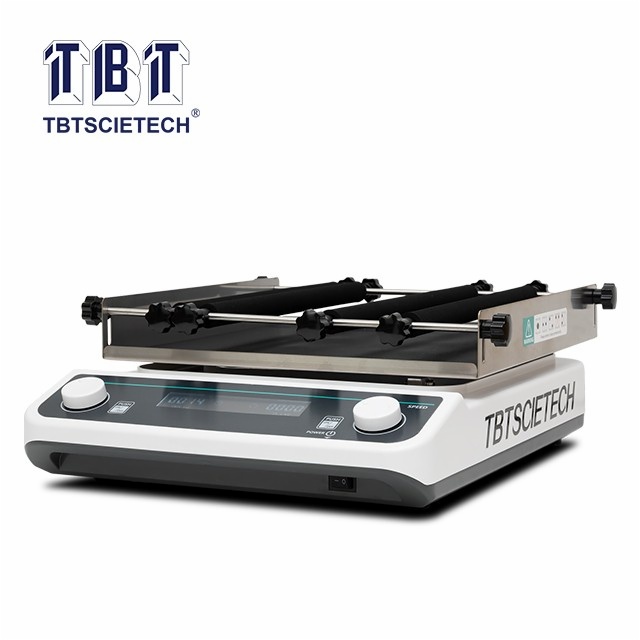

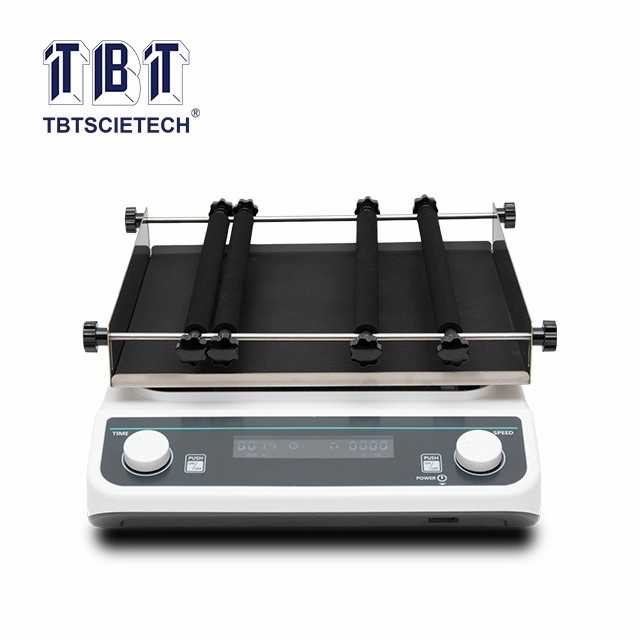

    TBTBR-40OS bottle rolling machine can be used for affinity test between aggregates and bitumen.
    It could simulate the effects of traffic and weather conditions on these materials by continuously rolling bottles with specimen inside.

    EN 12697-11

    1.Brushless motor can ensure long time stable running;
    2.Timing range and speed can be set and displayed via knob and screen;
    3.Suitbale for variety of containers.

    Weight capacity

    ≤5kg

    Roller quantity

    4pcs

    Roller length

    280mm

    Rolling speed

    40~200rpm

    Stepping

    5rpm

    Motor type

    Brushless motor

    Display type

    LCD

    Timer

    1~23h59min

    Work temperature & humidity

    5~40℃, ≤80%RH

    Power supply

    100-220V, 50Hz
