Torque Meter (ST-1～20) Manufacturer

Torque Meter (ST-1～20)

Enlarge

Item Code: Features:

Neutral packing
OEM accepted

Description
Main Specifications
Accessories

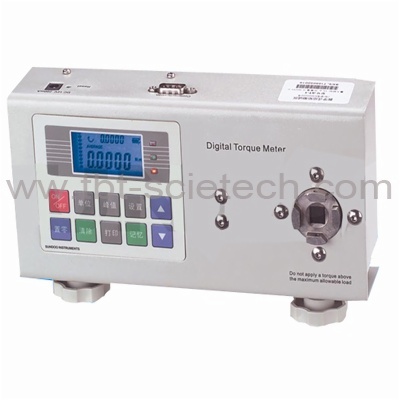

ST-1～20 Torque Meter

I. Product Trait:

1. Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds);

2. Automatic power off function: This function saves battery and keeps the gauge safe, also the power off time(1-60minutes) can be set By yourself;

3. Comparing function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);

4. Memory function: Memory 10 testing data, and calculate the average;

5. Three units conversion: Converting three units(N.m, kgf.cm, ibf.in) automatically;

6. RS-232C output: Connecting outside equipment and using the related CD for transmitting the tested data to computer for relevant treatment.

II. Product Specification

Model	ST-1	ST-2	ST-5	ST-10	ST-20
Capacity	1N.m	2N.m	5N.m	10N.m	20N.m
Load Resolution	0.0005N.m	0.001 N.m	0.002 N.m	0.005 N.m	0.01 N.m
Sensor Conformation	Sensor Inside
Accuracy	±0.5%FS
Testing speed	≤5000rpm
Power	8.4V 1.2V*7 Nickel Hydride battery
Charging time	About 4 hours
Battery operating time	About 40 hours
Waiting time	About 3 months
Battery life	≥300times
Adaptor	Input: AC 220V 300mA ; Output: DC 12V 300mA
Weight	About 2.4kg
