SH-10K Force Gauge (S type Sensor Outside) Manufacturer

SH-10K Force Gauge (S type Sensor Outside) SH-10K

Item Code:SH-10K Features:

Description
Main Specifications
Accessories

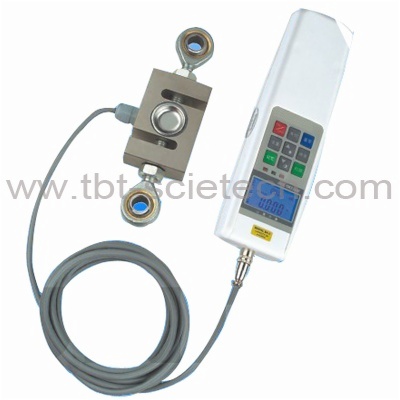

SH-10K Force Gauge (S Type Sensor Outside)

I. Brief Introduction:

High resolution, which can be used not only for simple measurement of tension/compression force but also used for various testing purpose; such as switch test, connector insertion/withdraw test, and fracture test, is efficient push pull testing equipment in a new generation.

II. Product trait:

1. High Accuracy & High resolution: Accuracy : ±0.5% Min resolution : 0.001N;

2. Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds);

3. Comparing Function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);

4. Memory Function: Memory 10 testing data, and calculate the average;

5. Units Conversion: Converting three units(N, kgf, ibf) automatically;

6. LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;

7. Automatic Power Off Function: Power off time (1-60minutes) can be set by yourself;

8. RS-232C Output: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing;Patent number:ZL200430151019.3,ZL200620013022.2.

Model	SH-10K
Capacity	10KN
Load Resolution	0.005kN
Sensor Conformation	S type Sensor Outside
Measuring Range	10% - 100% FS
Inaccuracy	Within ±0.5%
Power	8.4V 1.2V*7 Nickel Hydride Battery
Charging Time	About 4 hours
Battery Operating Time	About 40 hours
Waiting Time	About 3 months
Battery Life	≥300 times
Adaptor	Input: AC 220V 50Hz Output: DC 12V 300mA
Weight	1.9kg
