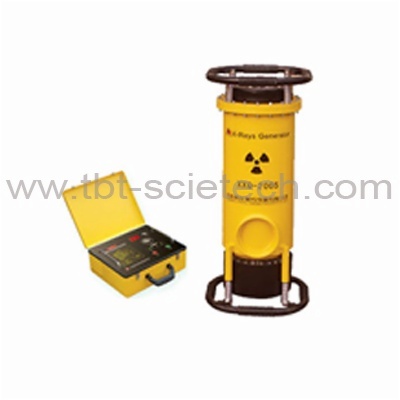

    Portable X-ray Flaw Detector (with rippled ceramic X-ray tube) XXG

    Portable X-ray Flaw Detector (with rippled ceramic X-ray tube)
    Item Code:XXG Features:
    Neutral packing
    OEM accepted
    • Description
    • Main Specifications
    • Accessories
    Portable X-ray Flaw Detector (with rippled ceramic X-ray tube) can be used in non destructive testing (NDT) of thin iron plate, aluminum material, rubber and so on, with which you will get images of high quality and clarity.
    Portable directional X-ray Flaw Detectors (with rippled ceramic X-ray tube) include the following type:    XXG-1605, XXG-2005, XXG-2505 and XXG-3005.
    The rippled ceramic X-ray tube in the portable directional X-ray Flaw Detector has the advantages of high voltage, large power, small size, high stability and long service life. So the portable directional X-ray Flaw Detector has the features of small size, light in weight, long service life and good shockproof ability.
    Product Model
    Voltage(KV)
    Maximum Rating
    (kW)
    Focus size
    (mm)
    Radiation Coverage
    Max. Penetration A3 Steel (mm)
    Generator Weight
    (kg)
    Generator Dimensions
    (mm)
    XXG-1605
    60～160
    1.5
    0.8×0.8
    40+5°
    19
    14.5
    225×225×550
    XXG-2005
    100～200
    2.0
    2.0×2.0
    40+5°
    30
    18
    285×285×615
    XXG-2505
    150～250
    2.5
    2.0×2.0
    40+5°
    40
    30.5
    320×320×640
    XXG-3005
    170～300
    3.0
    2.5×2.5
    40+5°
    50
    36.5
    345×345×670
    XXG-3505
    180～380
    3.5
    2.5×2.5
    40+5°
    60
    38
    345×345×670
