1. Introduction

1.1. Name

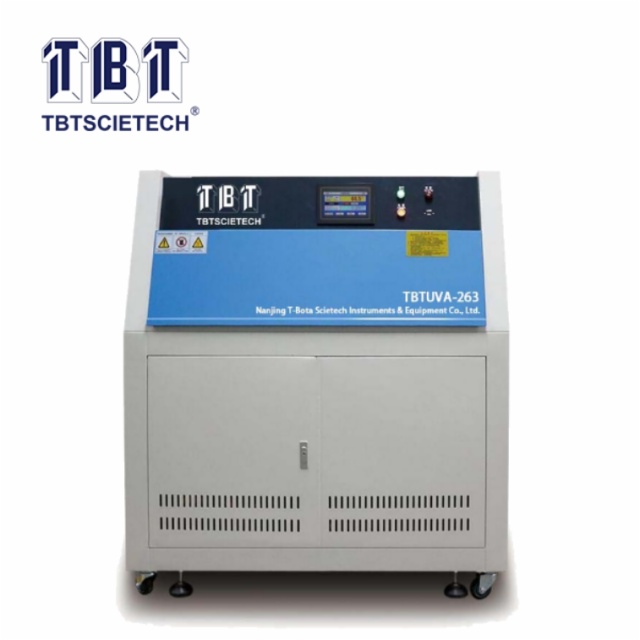

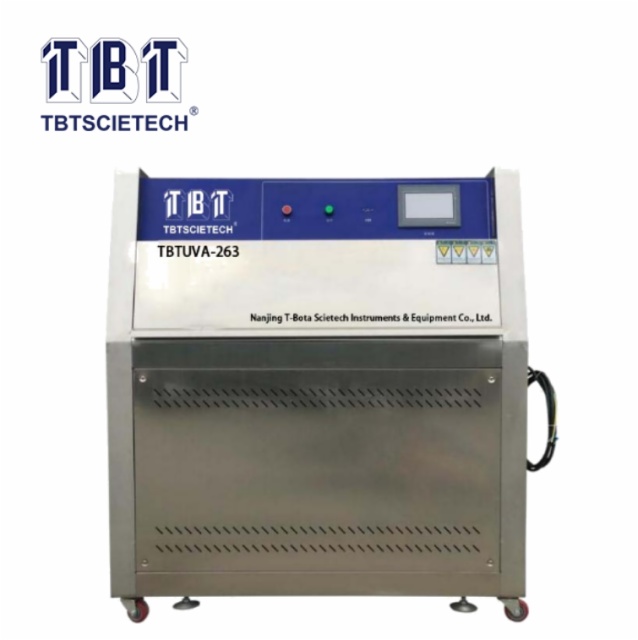

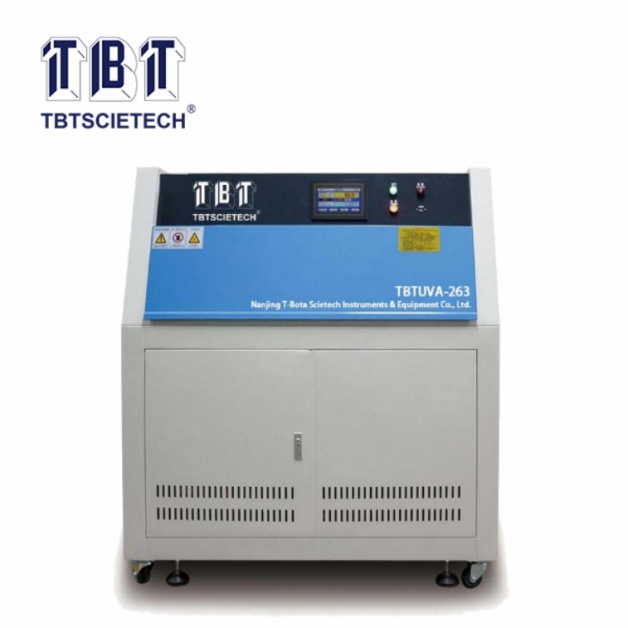

UV aging test chamber

1.2. Model

TBTUVA-263

1.3. Specimen Limited

Do not test explosive substances, flammable substances, and materials containing the above substances as samples. Otherwise, there is a danger of explosion, fire and other accidents.

Do not allow corrosive substances to enter the water tank or chamber, which may cause the corrosion resistance of the product to decrease significantly.

Do not use living things and substances that will exceed the allowable calorific value as samples.

2. Size & specification

2.1.  Interior size

24 sets of fixtures (size: L280xW75mm), for 48PCS samples placed in total.

Calibration hole is available if required.

2.2. Exterior size

1300×1560×600 mm appr. (WHD)

2.3. Weight

140 kgs appr.

2.4 Sample

The sample placement test space is no more than three-quarters of the total space, and there is no heat load.

3. Performance

3.1. Temp. control

PID self-adjustment SSR control

3.2. Irradiation temp. range

RT+10℃ ~ 70℃ (adjustable)

3.3.  Condensing temp. range

RT+10℃ ~ 70℃ (adjustable)

3.4. Temp. deviation

±3.0℃

3.5. Temp. resolution

0.1℃

3.6. Temp. fluctuation

±0.5℃

3.7. Tempe. uniformity

±3.0℃

3.8. Humidity range

≥93%R.H (not adjustable)

3.9. Distance between lamps

70 mm

Distance between samples and lamps

100 mm ~ 350 mm adjustable

Irradiation range

0.35 W/m² ~ 1.0 W/m² adjustable

Irradiation lighting tube

Q-lab Lamp UVA-340 (other lamps UVB-313, UVA-351 is optional), L=1200/40 W, Φ 38 mm, 8pcs (average service life: 1600 hrs)

China brand is optional.

Function mode

Irradiation mode, condensation mode and spray mode can be operated alternately.

※The above temperature and humidity performance is measured under the condition of ambient temperature 25℃±3℃, relative humidity ≤85% no-load and no sample.

Irradiance probe (optional to purchase)

2pc / 4pc, Monitoring the real-time irradiance

4. Structure & Material

4.1. Inner material

SUS#304 stainless steel

4.2. External material

Painted shell or SUS#304 stainless steel

4.3. Duct circulation

Centrifugal circulation motor

4.4. Door and lock

Door handle lock, left door

4.5.  Control panel

LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes.

USB interface (Download historical data and historical curves as Excel and JPG)

Power switch button

Run Indicator

Water auto-supply button “Water Inlet”

Alarm indicator

4.6. Power cord

The back of the device is equipped with a drain outlet and a national standard 2.5m long cable.

5. Control System

5.1. Control mode

Program: 50/100 groups of programs, each group of programs with 50/100 segments, can set the whole cycle of the program, part of the cycle, program connection, set the program end action, standby action.

Fix-time (Constant): The running time and running conditions can be set.

5.2. Features

7-inch human-machine interface touch screen (English/Chinese language switchable)

The software is independently developed by Sailham and has a software copyright registration certificate. (Strong scalability, non-standard custom software can be modified as required)

Flat design, easy to operate

5.3. Sensor

PT100 three-wire high-precision sensor

5.4. Analog output

Voltage pulse (SSR) 2 points, DC 24V, minimum pulse width 5ms.

6. Spray System

Using the manual control function of the controller, to observe the spray condition in the open-door state, so as to adjust or replace the nozzle;

The machine is equipped with a sprinkler, the sprinkler simulates the rain erosion during the rain, with a total of several nozzles, sprayed evenly. The spray time is set by the user;

Inner water level is with automatic water replenishing.

7. Light source system

Types of light source (simulate the UV light in sunlight)

Light source: 8 UV fluorescent lamps with rated power of 40W, UVA-340 (user can choose other lamps). Like other lamps, the aging of the UV lamps causes the lamp output to drop, and the UV without the Irradiance meter control system uses the rotational position method to compensate. This system can be used for many application standards, but it has inherent limitations. This method of changing position does not compensate for the effects of different batches of lamps or the surrounding environment.

     Fig. - Lamp replacement method.

UVA-340: A wavelength that emits sunlight from 365 nm to 295 nm, and its radiation peak is at 340 nm. UVA-340 is especially useful for control tests in different tests, with the best simulation of sunlight in the short-wave UV range.

UVB-313: The wavelength range is between 280 nm and 315 nm. UVB-313 ages faster than UVA-340 lamps, but their shorter wavelengths than the sun cutoff point can have unrealistic results for many materials.

8. Heating system

High speed heating tube of U-shape titanium alloy;

Independent temperature control system and lighting system;

Temp. control and output power controlled by micro computer with high accuracy and high efficiency.

Thermal protection function of heating system.

The black panel adopts the colorful touch screen controller or digital key pressing controller to control the heating process. PID self-regulation, monitoring all adopt the standard PT100 temp. sensor of black panel.

Temp. of water tank adopts the colorful touch screen program to control the heating, water tank locates at the bottom of tank, there is electrical heating device. During the test process, there’s test phase is dark condensation which need to generate saturated steam of high temperature, when steam meet the cool temperature, it condenses into water on its surface.

Safety protection device

Heating and humidifying over temperature protection

Overload short circuit leakage protection

Motor overheating protection

Water shortage protection

Quality assurance system

We strictly follows the requirements of ISO 9001:2015 quality management system and European CE product certification.

Standard accessories attached to machine

Stainless steel SUS # 304 Shelf layer 1pc

Power cord 1pc

8 pieces of lighting tube installed in the equipment

Operation and maintenance instructions 1 copy

Controller manual 1 copy

Warranty card 1 copy

Equipment ambient environment

Equipment placement

The ground is level and well ventilated

No strong vibration around the device

No strong electromagnetic fields around the device

No flammable, explosive, corrosive substances and dust around the equipment

Appropriate space for use and maintenance should be reserved around the equipment, as shown in the following figure:

A: not less than 10cm

B: not less than 60cm

C: not less than 60cm

D: not less than 150cm

Ambient environment

Temperature: 5℃～35℃ Relative humidity: ≤85% Air pressure: 86kPa～106kPa

Power supply source

Voltage: AC220V±10%, Frequency: 50HZ (customization for 60Hz is available), Grounding resistance of protective ground wire is less than 4Ω

The user configures an air or power switch of the corresponding capacity for the equipment, and this switch must be used independently for the equipment (not to be connected to a socket)

Installed power: 4.5KW

Maximum current: 20A

Condensate spray water

Bottled drinking water or distilled water, not unfiltered tap water;

Standard accessories attached to machine

Stainless steel SUS # 304 Shelf layer, Qty: 1 piece

Power cord, Qty: 1 piece

8 pieces of lighting tube installed in the equipment

Operation and maintenance instructions + warranty card, 1 copy
