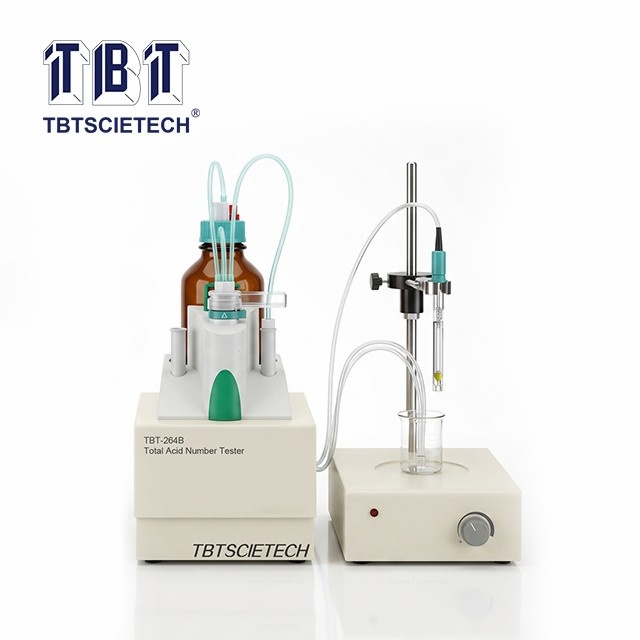

    Total Acid Number Tester TBT-264B

    Total Acid Number Tester
    Item Code:TBT-264B Features:TBT-1884B is designed referring to ASTM D664 Standard Test Method for Acid Number of Petroleum Products by Potentiometric Titration.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-1884B is designed referring to ASTM D664 Standard Test Method for Acid Number of Petroleum Products by Potentiometric Titration.
    It adopts potentiometric titration principle. Recording the titration of the electrode potential and the titration volume, find out the equivalence point and corresponding titrant volume, and thus obtained the sample pH value. This instrument can accurately detect the acid value of transformer oil, turbine oil, anti oil, diesel, gasoline and other petroleum products.

    ASTM D664

    1. The device can clean, replenish and add liquid automatically;
    2. The device can automatically judge the titration result, store and print the titration result.

    Potential measurement range

    (0~±1800.0)mV

    Basic error of electronic unit

    0.1%±0.5mV of full reading

    Input impedance

    Ri≥1×1012Ω

    Burette volume

    10mL

    Burette precision

    ±0.1%F·S

    Acid number measurement range

    ≥0.05 mgKOH/g

    Minimum titration volume

    0.001mL

    Working temperature & humidity

    15~35℃, ≤80%RH

    Size

    Approx. 350x280x180mm

    Weight

    Approx. 12kg

    Power supply

    220V, 50Hz
