    Porous Ceramic Water Permeability Testing Machine TBTTCST-1

    Porous Ceramic Water Permeability Testing Machine
    Item Code:TBTTCST-1 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

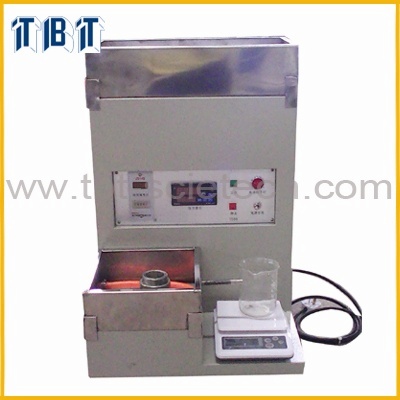

    This machine consists of water tank, electric control caibnet, sample clamp, balance etc., with precision digital pressure measuring system, machine can test the pressure very accurately. The sample clamp adopts cylinder type cross section sample and ensure the liquid can only flow through the sample hole.



    Testing pressure

    0~0.2MPa

    Measuring accuracy of pressure gauge

    ±1% (measuring unit of KPa)

    Standard sample size

    D36 ±0.5mm (can be customerized)

    Power supply

    220VACA





    Any questions, please contact us.
