Lab Tablet Machine (Equipment Control Type) Manufacturer

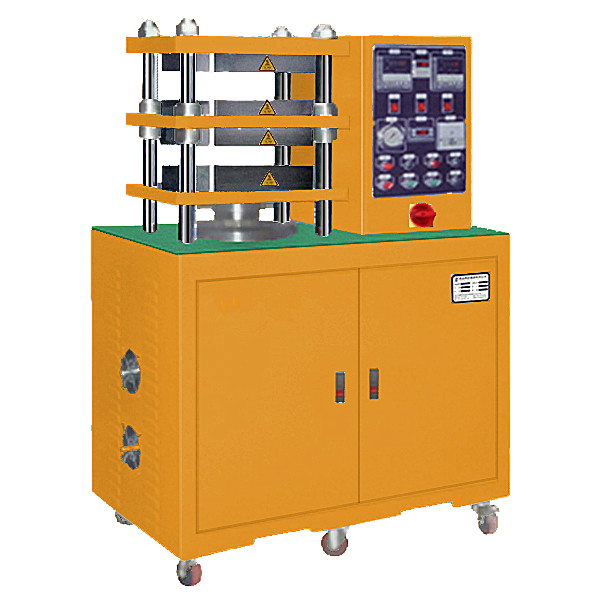

Lab Tablet Machine (Equipment Control Type) TBTTM-8170A

Item Code:TBTTM-8170A Features:

Description
Main Specifications
Accessories

The material is placed in the casting mould and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.

Capacity	10-50T
Temperature	Room temperature to 300℃
Temperature controller	LED Indicator
Heating method	Electrical Heating Module
Hot Pressure Plate	300*300mm
Cold Pressure Plate	300*300mm
Distance of Pressure Plate	70mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	Mirror chrome plate
Cooling Temperature Scope	Room Tem-+5℃
Cooling type	Tap water cooling or compressor cooling water
Oil cylinder stroke	Max 200mm
Oil cylinder speed	11mm/s
Pressure gauge	0-350KG/Ssq.cm
Power	10.6HP
Volume W×D×H	Around 1000 × 500 × 1500mm
Power supply	AC380V，3phase
Weight	About658kg
