Lab Double-Roll Mill (Oil-Heating Type) Manufacturer

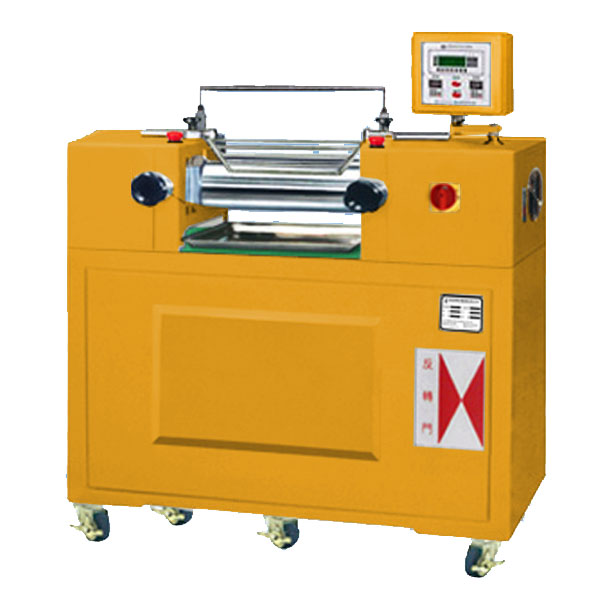

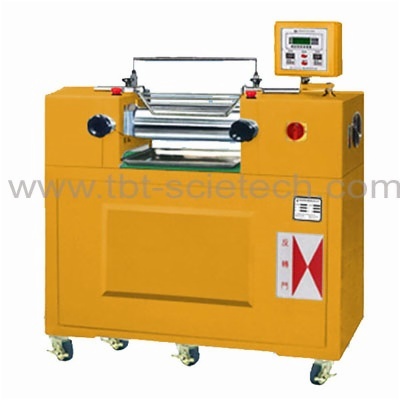

Lab Double-Roll Mill (Oil-Heating Type) TBTRM-8175B

Item Code:TBTRM-8175B Features:

Description
Main Specifications
Accessories

This experimental mill can be applied to the mixing and scattering of polymers. Special thermal oil is adopted to heat with accurate surface temperature. The chrome plating will not fall off from the roller mirror surfaces. The adjustable roller gap and reliable security protection devices make it easy to scatter, lightweight and easy to use.

Temperature	Room temperature to 260℃
Temperature controller	High precision of LED digital display, can be set up and display of temperature
Heating method	Oil heating
Heating media	Mobil 605# heat-transfer oil ( provided by customer)
Heating time	About 40min from room temperature to 200℃
Cooling system	Tap Water cooling
Roller size Ø×L	Ø150×L320mm
Rotate ratio	1: 1. 27
Roller space	0.1 to 10mm adjustable
Safety protection	stop while pulling rod, inversion with knees and other security devices
Volume W×D×H	Around1000 × 430 × 1150mm(without the adjustable electric control box)
Power supply	AC380V，3phase
Weight	About 450kg
