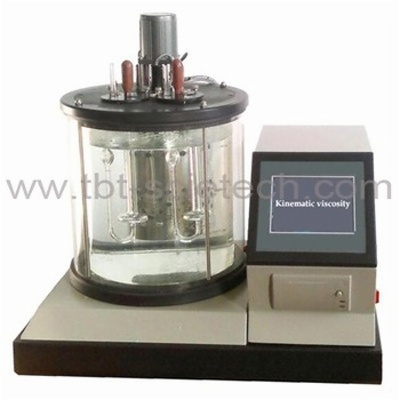

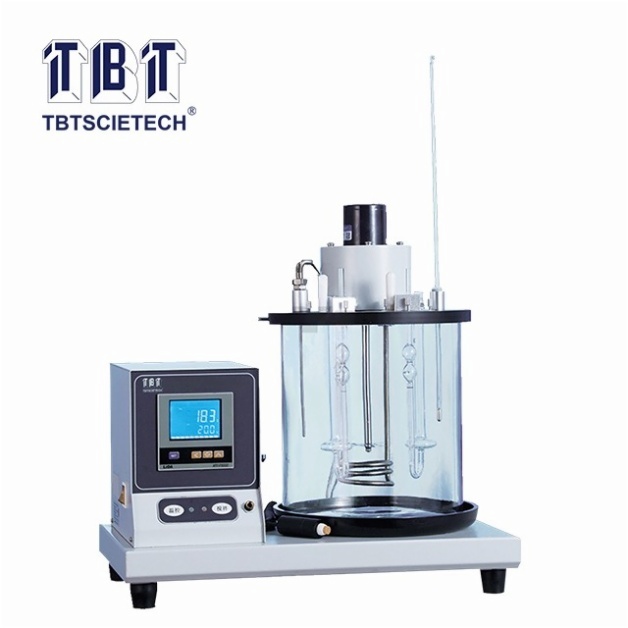

Kinematic viscosity / Reverse-flow viscosity / Viscosity index Tester TBT-265B-1

Item Code:TBT-265B-1 Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

1. Multifunctional. It can determine the kinematic viscosity of liquid petroleum products (Newtonian liquids) and the kinematic viscosity of dark petroleum products. It can also be used to determine the viscosity index of lubricating oils.

2. Micro-processor control and colored LCD technology. Chinese-English bilingual menu. GUI touch screen. Easy to operate.

3. Advanced digital control and display. Automatic kinematic viscosity determination

4. It can test 2 samples at a time. The parameters such as temperature, time, coefficient of capillary viscometer tube can be inputted in or displayed on the screen.

5. New-type temperature sensor. The temperature resolution is 0.01℃. Temperature control precision is ±0.05℃. 6. It can save 99 coefficients of capillary viscometer.



Capacity of bath

Ф240mm×280mm

Temperature range

Ambient to 100.0℃

Temperature control accuracy

±0.01℃

Timing accuracy

±0.01s

Display

 5.6 inch colored LCD

Power supply

 (220±10%)V,50Hz

Maximum power consumption

750W

Ambient temperature

(15~35)℃

Relative humidity

<85%

Sample amount

4 samples

Dimension

535mm×440mm×550mm

Net weight

23kg
