High-speed Banbury Compounder with Screw Pelletizer Line Manufacturer

TBT-3220C high-speed Banbury Compounder is combines with TBT-SW45 Granulator to complete the TBT-3220ZH Pelletizer Line.

TBT-3220C Banbury compounder

TBT-3220C Banbury compounder is used for continuous plasticising, mixing and dispersing, alloying, degassing and chemical conversion or degradation, to make initial test for developing new formulas, once prototype product meeting customer’s requirement, the experimental formula will be used in bulk production line.

The application materials and products are ceramic powder, zirconia, alumina, copper oxide, titanium alloy, tungsten powder, magnetic powder, stainless steel powder, metal powder and cemented carbide, and materials for producing silicon rubber products.

TBT-SW45 Double-Screw Feeding Pelletizer

This machine is suitable for extrusion of zirconia, alumina, ceramic powder, magnetic powder, stainless steel powder, metal powder and cemented carbide. The screw design allows good dispersion, stable discharge, wear resistance and high productivity.

Features:

1, Barrel and screws are integrate designed and made of high-quality special steel which manufactured through high-temperature vacuum processing and imported from Japan. Screw hardness is treated HRC60°-62° , the screw thread shape & quality are designed for durability for extrusion of ceramic powder and metal powder. The barrel depth is 0.6-0.75mm and made of tungsten carbide double alloy (88WC/12CO) of grade-A, with alloy layer thickness 2-3mm at hardness HRC58°-60°, the density of surface coating is 98%.

2, Force feeding the mixed dough of ceramics, zirconia, alumina and metal agglomerates with high precision and large torque, with least thermal deformation, eliminate the traditional crushing process. The abrasive-resistance and corrosion-resistance performance is good under high temperature & high pressure .

3, The screws are wear-resistance and corrosion-resistance treated and convenient for disassemble.

4, The drive motor works stable at low noise level saving energy.

5, Equipped with HLP frequency converter, granulating and cutting, speed adjustable for pelletizing.

TBT-3220C Banbury compounder Specification:

Item	Specification
mixing capacity	5L
Main motor	11KW
Pressurizing cylinder	Diameter 120
Reducer	gear reducer with hard surface teeth
Rotating speed ratio front : rear	1: 1.25
Front & rear rotating speed	0 - 60RPM variable frequency adjustable speed
Heating method	Electrical heating
temperature control range	Room temperature ~300°C
Cooling mode	Tap water cooling / air cooling
Control system	controlling electrical components made in Taiwan
locking device for disassemble & restorer	Oil Hydraulic system (adjustable pressure 5 – 20T)
motor for hydraulic pump	2.2kw
Bearing	NSK imported
Material of mixing chamber	die steel, strengthened hardness by tempering to HRC 60℃-62℃
Inner Chamber surface treatment	Chrome plating with fine polishing
Material clearing	disassemble the chamber, mixed material drop down
Rotor design	detachable, simple operation, convenient for maintenance.
Power	380V, 50Hz, 3-phase 5-wire
Heating power	10KW
Total power consumption	20.5KW
Total power consumption	with overloading protection device & emergency stopper
overall dimension LWH mm	1700x1400x2400
Weight	2000KG

TBT-SW45 Double-Screw Feeding Pelletizer Specification:

Double-screw feeding pelletizer line	TBT-SW45
Capacity	2-40KG/H
Machine head	Die head with hot cutting
Pelletizer	0.75KW Die head hot cutting
Cooling	1.5KW air cooling system
Forced feeding device	double screw, with electric heating and thermal insulation
Air-cooling hood	hood for cutting device
Vibrating sieve	1 group
Pelletizer cutter	cutting speed adjustable 0-910rpm/min
Material barrel with adjusting wheel	1 unit made of Stainless steel
Screw diameter	¢45MM
Length-diameter ratio	20:1
Heating device	4 zones, 4KW
Main motor	5.5KW
Feeding motor	2.2KW

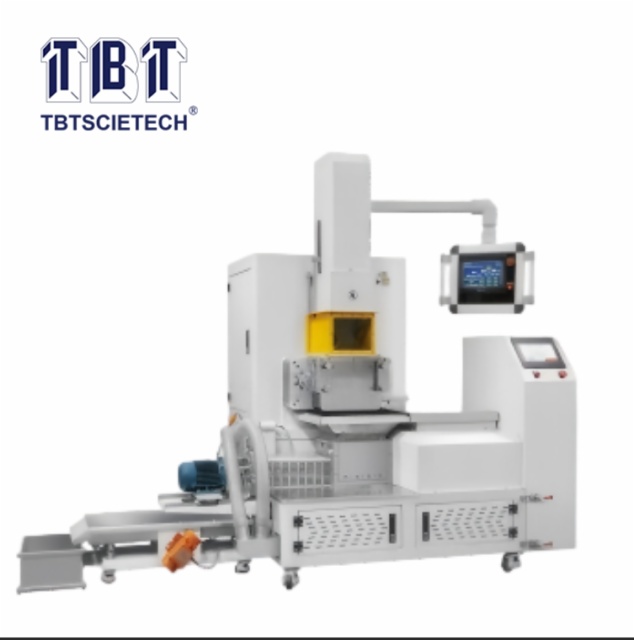

High-speed Banbury Compounder with Screw Pelletizer Line TBT-3220ZH
