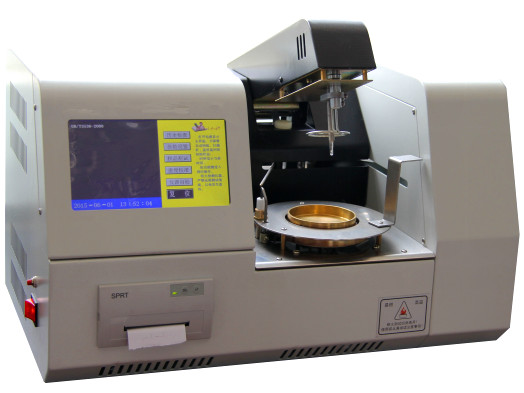

Fully-automatic Cleveland Open-Cup Flash Point Tester TBT-3536D

Item Code:TBT-3536D Features:
  • Description
  • Main Specifications
  • Accessories

1. This instrument is a kind of fully-automatic instrument wich can do determination for both flash point and fire point.

2. This instrument adopts technology of single chip microcomputer and LCD screen.Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.

3. This instrument adopts desktop structure and advanced design.The man-machine interface make it easy to use.And the test result is accurate.It can be widely used in railway,aviation,electric power, petroleum industry and colleges,scientific research institutes,measurement departments to do determination of flash point and fire point for petroleum products.



Power supply

AC(220±10%)V, 50Hz

Flash point determination

Range:Ambient to 400℃                                            Repeatability: ≤8℃                                  Reproducibility:≤17℃                                           Accuracy:0.1℃

Heating rate

Correspond with GB/T3536 and ASTM D92

Igniting mode

Electric ignition,

Gas flame diameter: 3.2mm~4.8mm

Ambient temperature

(10~40)℃

Relative humidity

≤80%

Maximum power consumption

500W

Dimension

520mm×380mm×310mm
