TBT-P800 is a compact, touchscreen-operated instrument designed to evaluate the structural integrity of foundation piles under dynamic loading. It supports multiple signal processing methods for accurate defect localization, seamless wireless data transmission, and large-capacity storage. Built for reliable field use, the device features a long-lasting rechargeable battery and includes comprehensive Windows software for advanced data analysis and automated report generation.

1.Enables seamless wireless transfer of testing data;

2.Intuitive workflow allows operators to quickly master the device;

3.Lightweight, small-footprint design ensures easy field transportation;

4.Features simplified menu navigation via a responsive touchscreen display;

5.Supports multiple signal processing methods for more accurate defect localization;

6.Equipped with large internal memory paired with removable mobile storage support;

7.Built-in rechargeable lithium battery ensures extended standby and field operation time;

8.Includes comprehensive Windows software for powerful post-processing, flexible print layout previewing, and automated test report generation.

Dynamic range	>138 dB	System noise voltage	<2mV
A/D resolution	16 bit A/D	Amplifier band	10Hz~10kHz
Sampling interval	2us~32768us	Magnification	1~128 times
Time indication error	<1%	Sample length	1024, 2048, 4096
Sensor sensitivity	100mV/g	Channel number	Single channel
Continuous working time	>10 hours	Sensor band	1~10000Hz
Working temperature & humidity	-10~40℃; <90% RH	Power supply	Built in 7.4V lithium battery

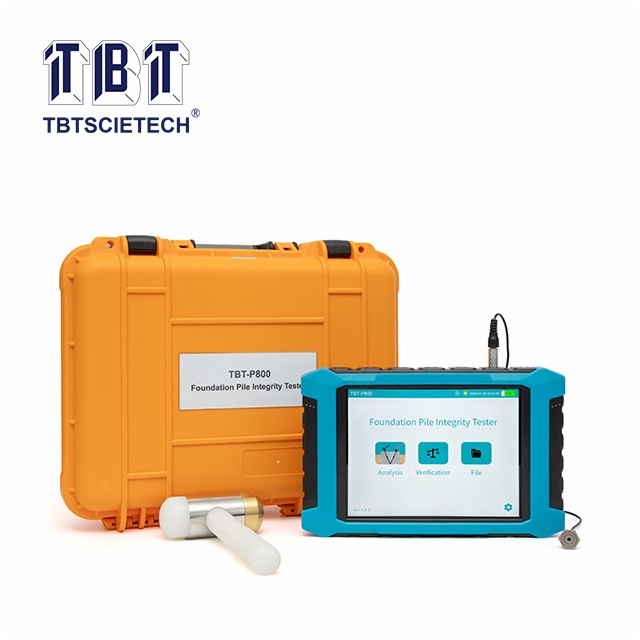

Foundation Pile Integrity Tester TBT-P800
