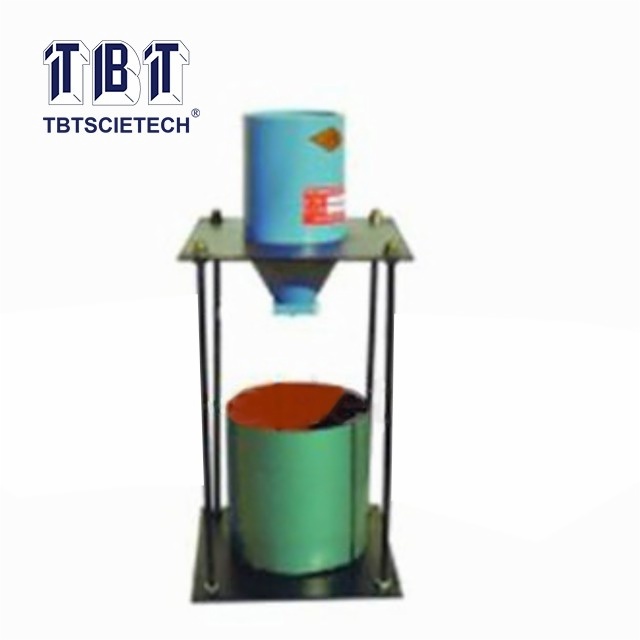

    Fine aggregate roughness tester WX-2003

    Fine aggregate roughness tester
    Item Code:WX-2003   Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Fine aggregate roughness, fine aggregate edges and corners of the tester, it is used for measuring natural sand, artificial sand and stone , it is used in road nitrate and other fine aggregate roughness to assess angular fine aggregate particles, surface texture, fine forecast aggregate for asphalt internal friction angle and resistance to flow and deformation properties of mixing concrete workability of.



    tapered cylinder funnel

    angle 60°±2°

    Funnel mouth diameter

    12.7mm±0.3mm；100ml3

    container

    100ml±5ml

    Bucket capacity distance

    115mm±1mm

    tamping rod diameter

    25mm±0.5mm

    tamping rod weight

    340g±5g

    net weight

    9kg

    outside diameter

    310×310×500 （mm）
