    Drilling Fluid Oil and Water(Solid) Retort Kit TBTZNG-1A

    • Drilling Fluid Oil and Water(Solid) Retort Kit
    • Drilling Fluid Oil and Water(Solid) Retort Kit
    Drilling Fluid Oil and Water(Solid) Retort Kit
    Drilling Fluid Oil and Water(Solid) Retort Kit
    Item Code:TBTZNG-1A Features:TBTZNG-1A is used for separating and measuring the volumes of water and solids contained in a sample of drilling fluid.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

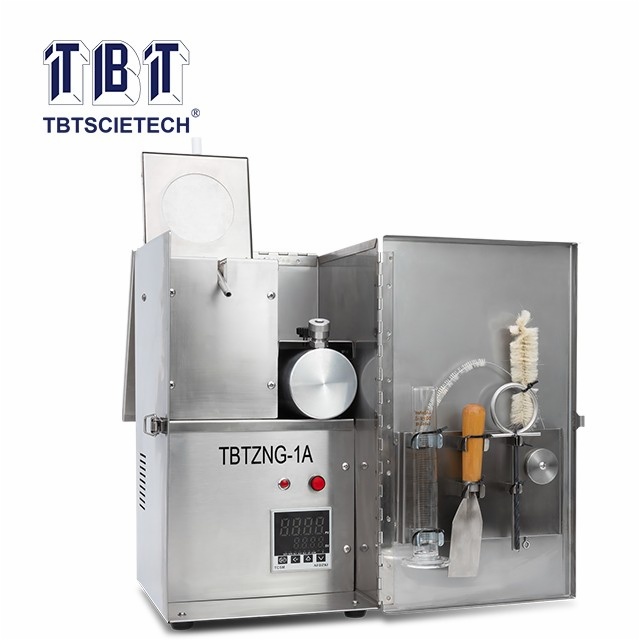

    TBTZNG-1A is used for separating and measuring the volumes of water and solids contained in a sample of drilling fluid.
    It is heated by external device, 50ml of drilling fluid is heated to vaporize the liquid component which are then condensed and collected in a graduated cylinder. Calculations can be to determine the quality of water and solids or the volume percentages of them.
    1.The external heating device has better accurate when compare with 20ml retort, it can avoid overheating;
    2.Retort is easy to be operated to learn the concentration of solids and conglutination of drilling fluid quickly.

    Capacity of distillatory

    50±0.2ml

    Liquid recovery rate

    >98%

    The highest temperature

    500℃±20℃

    Power

    1000W

    Power supply

    220V, 50/60Hz
