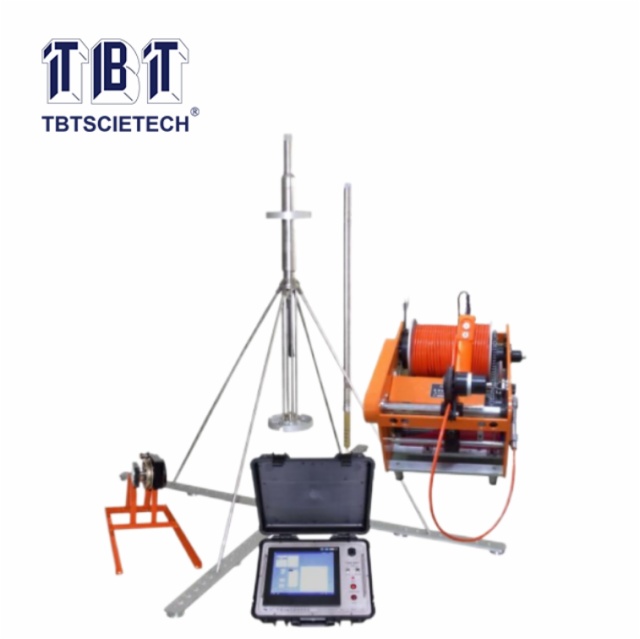

Concrete Bored Pile Detecting System (IPC) Manufacturer

1. JJC-1E adopts the latest all-digital system which based on the previous generation systems, technical indicators fully upgraded. The inclinometer, caliper measurement combined, higher precision and more practical.

2. The test is accurate, easy to use, high efficiency.

3. The control system adopts IPC as the main body, and anti-interference, strong performance, easy to use.

Borehole detection range
Standard configuration	Ф500mm～Ф1600mm（JJY-2）
Users can select	A. Install a 200mm extending leg on the detection leg to expand the detection range to Ф2000mm on base of standard configuration
	B. Ф1500mm～Ф2500mm（JJY-5）
	C. Install a 770mm extending leg on the detection leg to Ф2800mm on base of B
Borehole measuring precision	≤±5mm
Sediment, inclination measurements at once
Aperture, inclination measurement at once
Cable length	100m(125m is optional, maximum)
Cable tensile force	0.35t(The tear-out force is 0.65t)
Equipped with quick report and inspection report standard formats to choose
Fully equipped with vertical detection and sediment detection probe and all processing software

Concrete Bored Pile Detecting System (IPC) JJC-1EG
