TBTCTM-300B is designed for testing the cement compressive strength and cement/concrete flexural strength.

It is electro-hydraulically powered, electronic measuring, configured a dedicated hydraulic valve to achieve constant loading speed.

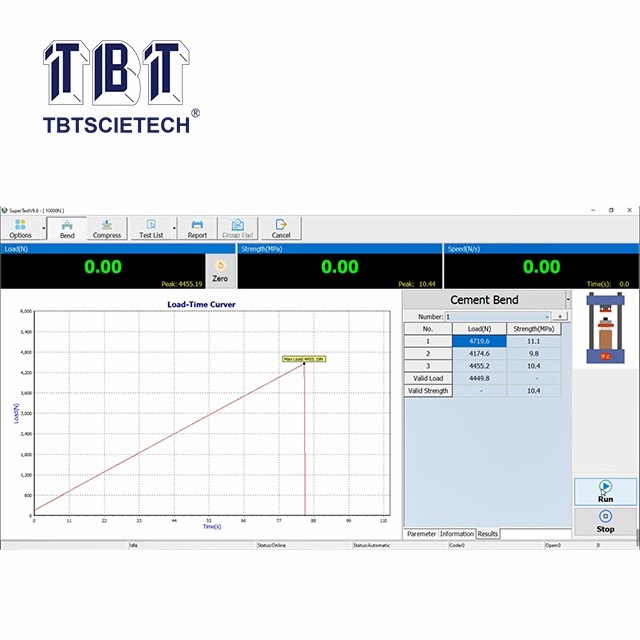

The test is controlled with the computer functioned with the test process and date process automatically, color screen display, English menu, force values and loading curve tracing display, standard keyboard input, test data storage, test report print and overload protection.

ASTM C349, ASTM C109, ASTM D1194, EN 196-1, EN 1015-11, ISO 679

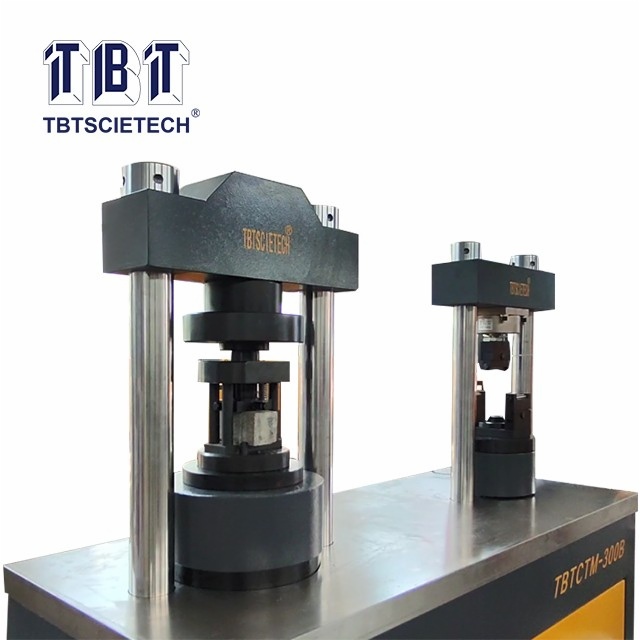

1.Suitable for cement compression and concrete flextural test;

2.Automatic operation through PC;

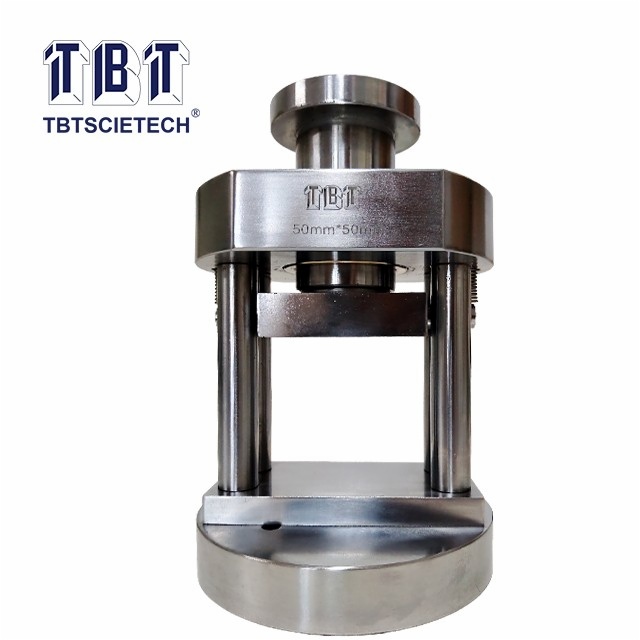

3.Suitable for 40x40, 50x50, 70.7x70.7x70.7mm cement compression test;

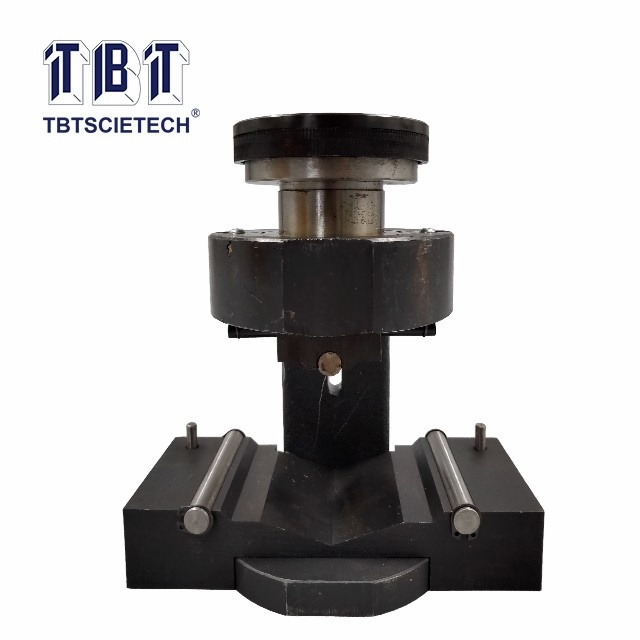

4.Suitable for 40x40x160mm cement flextural test;

5.Suitable for 150x150x500/600mm concrete flexural test(optional).

Max. compression test capacity	300kN
Max. flexural test capacity	15kN
Measuring range of load	Compression: 4%~100%F.S. Flexural: 10%~100%F.S.
Relative error	±1%
Loading rate for compression test	0.1~10kN/s
Loading rate for flexural test	0.5~200N/s
Vertical clearance between platen	170mm
Upper platen size	Ф155x60mm
Lower platen size	Ф155x35mm
Platen hardness	55HRC
Sensor type	Oil pressure sensor 50MPa
Hydraulic cylinder piston	Sealing ring type(PTFE)
Weight	Around 500kg
Power Supply	220/380V, 50/60Hz, 0.75kW

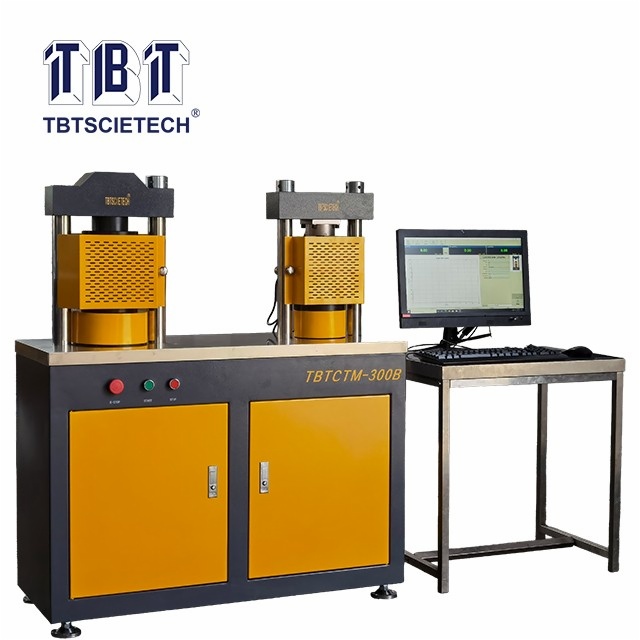

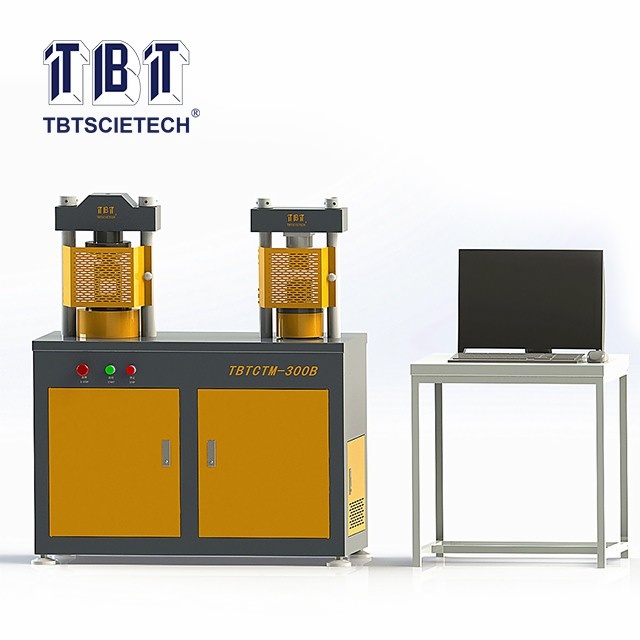

Compression and Flexural Testing Machine with PC Control TBTCTM-300B
