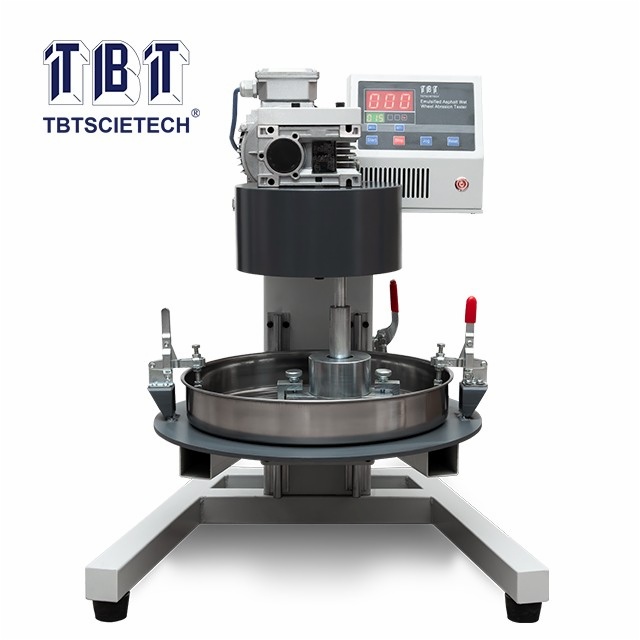

    Asphalt Wet Wheel Abrasion Tester TBT-0752

    Asphalt Wet Wheel Abrasion Tester
    Item Code:TBT-0752 Features:TBT-0752 is suitable to determine the compatibility and water detrimental resistance of the slurry surfacing mixtures after molding.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-0752 is suitable to determine the compatibility and water detrimental resistance of the slurry surfacing mixtures after molding.
    It can determine the best asphalt content of mixtures together with the load wheel rolling test .
    1.It adopts floor type structure, it has novel design and stable structure;
    2.It adopts digital display panel for easy operation.

    The rotating speed of electric motor

    1400RPM

    Auto-rotation rate of the wheel head

    140RPM

    Revolution rate of the wheel head

    61RPM

    The weight of the wheel head

    2.27kg

    The length of the rubber hose for wheel head

    127mm

    Timing

    5minutes

    Dimension

    620x500x780mm

    Total power consumption

    ≤380W

    Power supply

    380V, 50Hz
