Whiteness Meter (portable) (WSB-1) Manufacturer

Whiteness Meter (portable) (WSB-1)

Enlarge

Item Code: Features:

Neutral packing
OEM accepted

Description
Main Specifications
Accessories

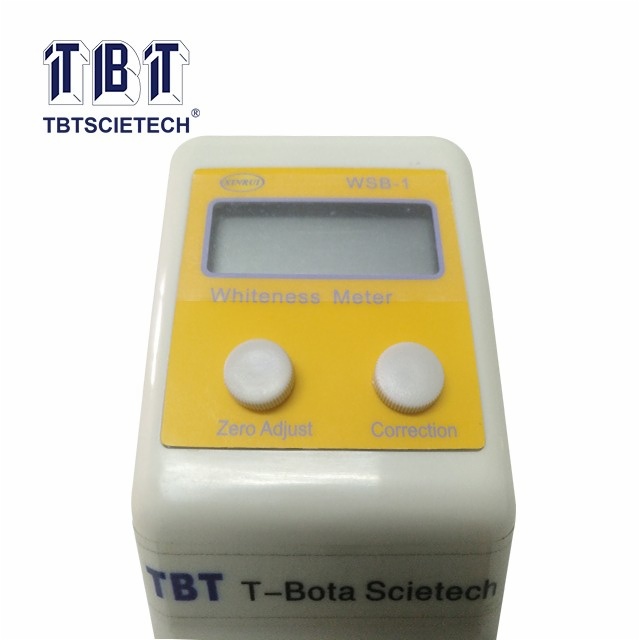

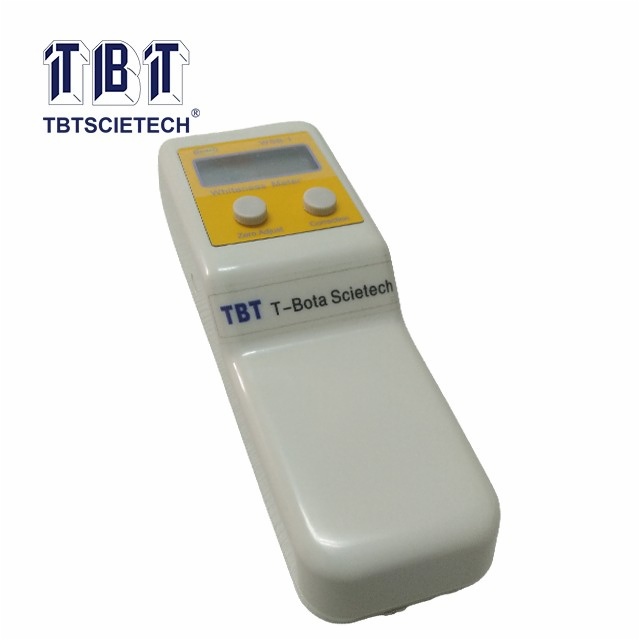

WSB-1 Whiteness Meter (portable)

I. Summary of functions

The WSB series whiteness degree instrument with the digital display is mainly applicable for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white. The whiteness degree can be accurately educed that is consistent with the visual degree. The opacity degree of the paper can also be accurately measured.

This instrument can be widely applied for the measurement of the whiteness degree of the objects like textile & printing & dying, oil paint & dope, chemical construction material, paper & paper plate, plastic product, white cement, ceramics, porcelain enamel, porcelain clay, French chalk, starch, flour, salt, wash, and cosmetics, etc.

II. Product Characteristics

1. AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

2. Configured with auto power-off function ad low power dissipation circuit, able to effectively prolong service life of battery;

3. Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

4. The simple operation, and can accurately measure the opacity degree of the paper

5. Adopt the standard white plate rated by the central government to convey the standard value, and the measurement is accurate and reliable

6.Configured with output port of measured values, possible to connect with recording meter。

Measuring Range	0-199	Measuring Condition	45/0
Whiteness Mean	Whiteness degree of blue light Wb=R457	Minimum Readout	0.1
Calibrate	15	Zero Draft	0.1
Basic Error	1	Repeatability	0.2
External Dimension	2357565 mm
Power Supply	DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter
