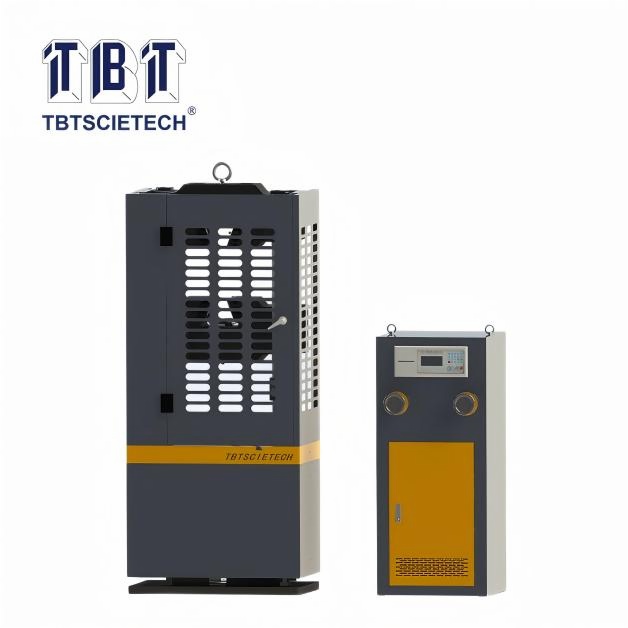

The testing machine is mainly designed for metal of tension test, compression test and bending test, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, displacement and loading speed display, peak force value maintained, overload protection and test data protection when the power supply is cut off temporarily. The test data can be processed automatically and printed out.
Model: |
WA-1000B |
WA-600B |
WA-300B |
WA-100B |
Max Cpacity (kN) |
1000 |
600 |
300 |
100 |
Measuring Range (kN) |
0 ~ 1000 |
0 ~600 |
0 ~ 300 |
0 ~ 100 |
Accuracy (from 20% of the full testing range) |
Grade 1 |
Grade 1 |
Grade 1 |
Grade 1 |
Time for Load Maintained (s) |
≥ 30s |
≥ 30s |
≥ 30s |
≥ 30s |
Max. distance between flexible clips (including ram travel) |
600 |
600 |
600 |
600 |
Distance between upper and lower platens |
0 ~ 500 |
0 ~ 500 |
0 ~ 500 |
0 ~ 450 |
Distance between two fulcrums of bending test |
100 ~ 420 |
100 ~360 |
100 ~360 |
100 ~300 |
Cliping diameter for round specimen |
Φ20 ~Φ60 |
Φ13 ~Φ40 |
Φ8 ~Φ32 |
Φ6 ~Φ22 |
Cliping thickness for flat specimen |
0 ~ 40 |
0 ~ 15 |
0 ~ 15 |
0 ~ 15 |
Max. ram travel (mm) |
200 |
200 |
150 |
150 |
Dimensions (L*W* H) |
Main frame (mm*mm*mm) |
960*620*2150 |
880*600*2020 |
740*460*1970 |
665*485*1536 |
Console (mm*mm*mm) |
550*600*1270 |
550*600*1270 |
550*600*1270 |
550*600*1270 |
Net Weight (Kg) |
Main frame |
2200 |
1700 |
1200 |
600 |
Console |
250 |
250 |
250 |
250 |
Power |
220v or 380v |
